Search Results for : jumper wire
44 results

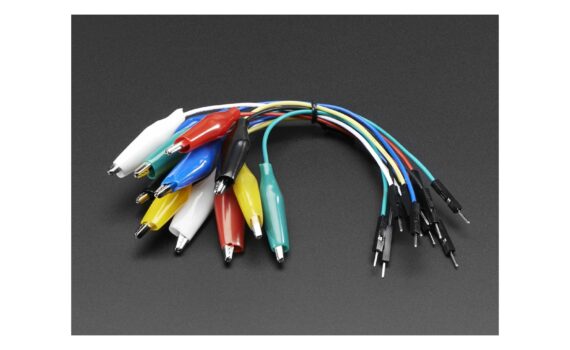

Male Pin to Alligator Clip Jumper Wires are ideal for breadboard prototyping and testing components within a circuit.

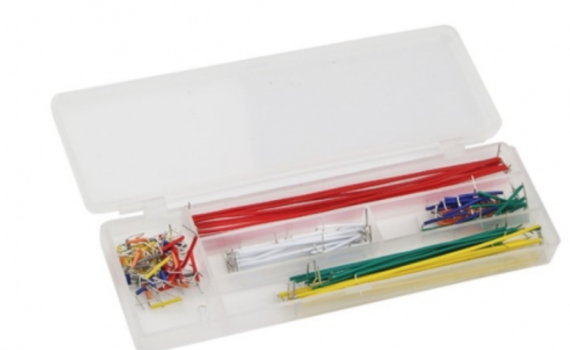

Boxed 14 kinds of length 140 high quality jumper bread board line bread board special line breadboard jumper
The breadboard assistant includes 14 different lengths of High-quality jumpers. Each of 10, Different colors, that is a package that includes 140 different lengths: red, orange, yellow, green, blue, purple, gray, brown, white. Box length: 165 × 55 × 10mm; Length of the wires: 2, 5, 7, 10, 12, 15, 17, 20, 22, 25, 50, 75, 100, 125. Code: JWMM KIT
3.3V/5V MB102 Breadboard power module + MB-102 830 points Solderless Prototype Bread board kit + 65 Flexible jumper wires
• Solderless breadboard (MB-102) • Wire Size: Suitable for 29-20 AWG wires • Size: 16.5 x 5.5 x 0.85 cm • Double sided tape on bottom. Can be fixed on a flat surface Power Supply: • Will produce 5V and 3.5V when 12 V DC is applied • Input Voltage : 6.5-12V (DC) • Maximum Output Current: < 700ma • Can be switched to 0V, 3.3V, 5V Code: BreadBoard Kit

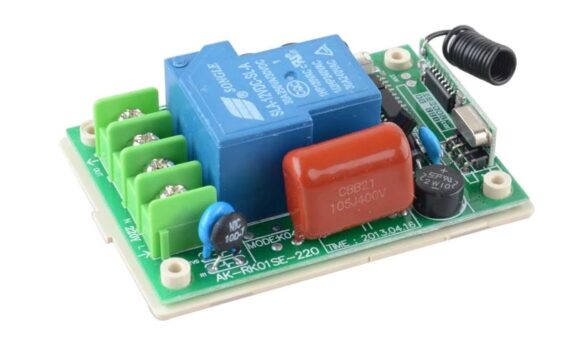

1.Working Voltage: AC220V 2.Max Load:30A Relay, Resistive load≤25A, Inductive load≤20A 3.Channel: 1CH 4.Working Frequency : 315MHZ/433.92MHZ Optional 5.Receiver sensitivity: : -105Db Code: NLWF04-RF220V

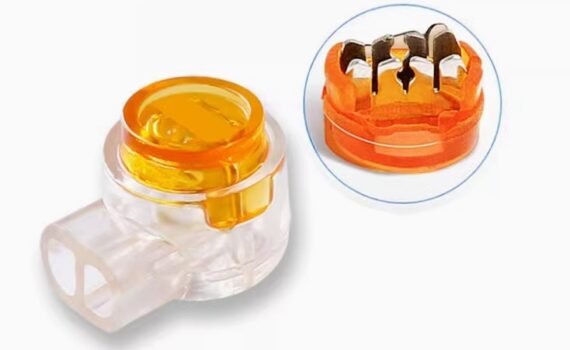

COSSE CABLE JUMPER/CABLE TEL JOINTER / JUMPER WITH GREASE Applicable core diameter: 0.4-0.7mm, including insulation layer large diameter 1.52mm. A fantastic and easy way of joining cables together without the messy hard work. Just insert the wires that need to be spliced into each hole and press the orange button down into the transparent plastic housing. Item Name: Jelly Crimps Connectors Material: ABS Code: JUMPER TEL

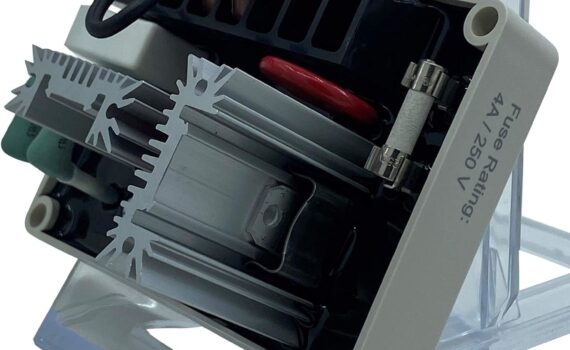

AVR MARATON
- AVR includes a 4 A, 250 V fuse in the rear face
- Generator's output voltage can be adjusted with a screwdriver via the potentiometer
- Remote voltage adjust rheostat can be added by removing a jumper wire
- Marathon SE350 can be used for a variety of applications, whether commercial or residential
- Ultra-responsive to any fluctuations in loads

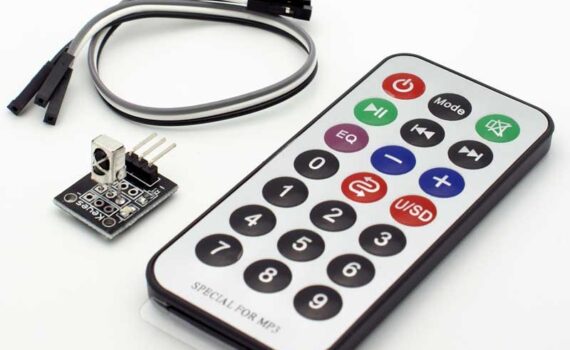

IR Remote Controller KIT This kit has everything you need to control your Arduino wirelessly from across the room. It includes an infrared remote control with 21 buttons (battery included), a 38KHz IR Receiver module, and 3 jumper wires for connecting the receiver to the Arduino. Code: IR Remote Kit

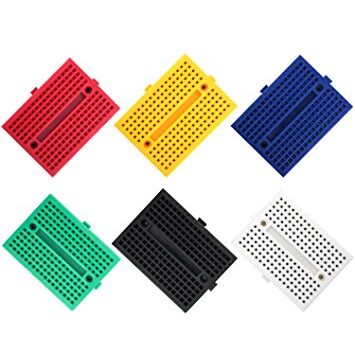

MINI BREADBOARD These Mini Breadboards are a great way to prototype your small projects! With 170 tie points there’s just enough room to build and test simple circuits; They’re also great for breaking out DIP package ICs to jumper wires! If you run out of room, no worries, these mini breadboards can be snapped together to form larger stretches of board. It has a peel and stick adhesive backing as well as two mounting holes for M2 screws so you can anchor it down.
Available Colors: White – Black – Blue – Green – Red – Yellow
Code: BB-102 Mini
Items Needed: Video: Code: //Simon says in LEDS. The game here ra7 betdawe leds w ba3den l player bado y3idoun.int buttonPins [] ={2,3,4,5,6};int ledPins [] = {7,8,9,10,11};int numberButtons = 5;int roundCounter = 0;int roundLedCounter = 3;unsigned long roundDuration = 10000; // 10 seconds la kel roundint BoardLEDS [50];int userBoardLEDS[50];int resetButtonPin […]
Items Needed: Code: #include "LCD.h"#include <LiquidCrystal_I2C.h>#define I2C_ADDR 0x27 // <<----- Add your address here. Find it from I2C Scanner#define BACKLIGHT_PIN 3#define En_pin 2#define Rw_pin 1#define Rs_pin 0#define D4_pin 4#define D5_pin 5#define D6_pin 6#define D7_pin 7LiquidCrystal_I2C lcd(I2C_ADDR,En_pin,Rw_pin,Rs_pin,D4_pin,D5_pin,D6_pin,D7_pin);void setup() { // initialize serial communication at 9600 bits per second: Serial.begin(9600); lcd.begin(20,4); lcd.setBacklightPin(BACKLIGHT_PIN,POSITIVE); […]
Items Needed: Code: #include <FastLED.h>#define LED_PIN 7#define NUM_LEDS 30#define T1 10 // pin 10 is trigger for sensor 1#define E1 9 //// pin 9 is echo for sensor 1int val=0;CRGB leds[NUM_LEDS];long DistanceSensor (int, int); //trigger echovoid setup() {//delay(10000);Serial.begin(9600); pinMode(E1, INPUT); //echo sensor 1 pinMode(T1, OUTPUT); //trigger sensor 1 FastLED.addLeds<WS2812, LED_PIN, […]

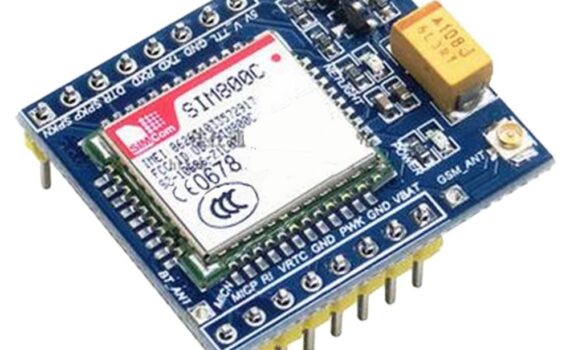

This GSM/GPRS developemnt board is based on SIM800C chip supporting bluetooth function and AT command control via the serial prot. On-board SIM card slot and support 850/900/1800/1900MHz quad band can be used worldwide. It is equipped with 5V/3.3V logic converter circuit compatible with most MCU breakout board to obtain the SMS and TTS function. Code: SIM800C
PROJECTS Traffic Light Controller! Full Tutorial Code. EDIT by Jean-Marie El Bacha|Published January 23, 2021 For this tutorial, you’ll need: 2 x Arduino UNO 9 x Resistor 330E 9 x LED 5MM Jumper Wires 3x Mini BreadBoard 1 x Dip Switch 1 x Resistor 10K Please note that the items needed will […]
For this tutorial, you’ll need: 2 x Arduino UNO 9 x Resistor 330E 9 x LED 5MM Jumper Wires 3x Mini BreadBoard 1 x Dip Switch 1 x Resistor 10K Please note that the items needed will be updated with each part! First Part: Explaining the project & Figure Out […]
For this tutorial, you’ll need: 1 x Arduino UNO 3 x Resistor 330E 3 x BDW93C Jumper Wires 1x RGB Strip LED 1 x Adaptor 12V 5A Watch this full video: Smart Christmas Tree Example Code: const int sampleWindow = 50; // Sample window width in mS (50 mS = […]
For this tutorial, you’ll need: 1 x Arduino UNO 1 x Resistor 330E Jumper Wires 1 x Led 5MM 1 x Voice Recognition Module Watch this full video: Download the library before you start Led Control Example Code: #include <SoftwareSerial.h> #include "VoiceRecognitionV3.h" VR myVR(2,3); // 2:RX 3:TX, you can […]
For this tutorial, you’ll need: 1 x Arduino UNO or a Universal Adaptor 1 x Resistor 330E (and Set of different values) BreadBoard Jumper Wires 1 x Led 5MM 1 x 555 Timer Click to check The 555 modules Watch this full video:
For this tutorial, you’ll need: 2 x Arduino UNO 4 x Resistor 330E BreadBoard Jumper Wires 4 x Led 5MM 2 x DIP Switch 6 pole Watch this full video: First Version of Code: #define Working 12 #define led1 10 #define led2 9 #define led3 8 int led=0; void setup() […]
For this tutorial, you’ll need: Arduino UNO 6 x Resistor 330E BreadBoard Jumper Wires 6 x Led 5MM Watch this full video: First Version of Code: void setup() { Serial.begin(9600); for (int thisPin = 2; thisPin < 7; thisPin++) { […]
For this tutorial, you’ll need: Arduino UNO 1 x Resistor 330E BreadBoard Jumper Wires 1 x Led 5MM 1x TCRT500 Module Watch this full video: First Version of Code: #include <avr/sleep.h>//this AVR library contains the methods that controls the sleep modes #define interruptPin 2 //Pin we are going to use […]
For this tutorial, you’ll need: Arduino UNO 9 x Resistor 330E 1 x Resistor 10K BreadBoard Jumper Wires 9 x Led 5MM 1x Push Button Watch this full video: Full Code: #define led1 4 #define led2 5 #define led3 6 #define led4 7 #define led5 8 #define led6 9 #define […]
For this tutorial, you’ll need: Soil Moisture Sensor with module Arduino UNO 2 x Resistor 330E BreadBoard Jumper Wires Led 5MM BDW93C Water Pump 2x Plastic Tubes Cup of water Watch this full video: Needed Codes and files for this tutorial: Soil Sensor Test: int soilPin = A0; int outputValue […]
For this tutorial, you’ll need: Ultrasonic Sensor HC-SR04 Led 5MM Blue & Yellow Arduino UNO 2 x Resistor 330E BreadBoard Jumper Wires Battery 9V Snap to DC cable Watch this full video: Code: long d; //distance variable long DistanceSensor (int, int); //trigger echo define T 8 // pin 8 is […]
In this tutorial, we will show you how to build a low cost thermometer, using Arduino & DS18B20 waterproof version (Digital Temperature Sensor) Step 1: Items you need to have Arduino UNO (or other Arduino Models) DS18B20 Waterproof Resistor 4.7KOhm (Preferably 1/2Watt). You can check the Watt availability for 4.7KOhm […]

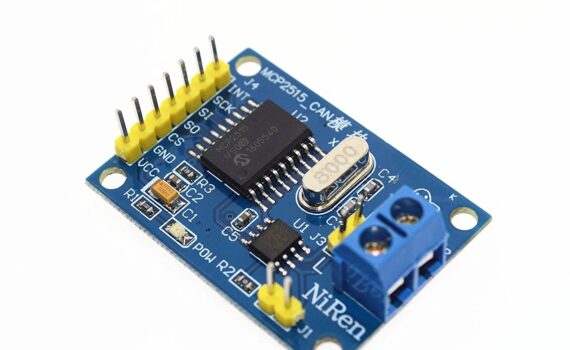

MCP2515 CAN Module TJA1050 Receiver SPI 51 Single Chip Program Routine Arduino
- Support CAN V2.0B technical standard, communication rate 1Mb / S.
- Module 5V DC power supply, SPI interface protocol control
- 0 to 8 bytes long data field.
- 8MHZ crystal oscillator
- 120Ω terminal resistance
- Use High-speed CAN transceiver TJA1050
- Impedance matching, guaranteed drive capability, long-distance data transmission, prevent signal radiation
- The working current: typical 5mA, standby current 1 microamp. Except for the power indicator.
Module with I2C interface has 4 analog inputs, 1 analog output and built-in LDR, thermistor and potentiometer.
Arduino KY-032 obstacle avoidance sensor is a distance-adjustable, infrared proximity sensor designed for wheeled robots. Also known as AD-032. The sensor detection distance ranges from 2cm to 40cm, it can be adjusted by turning the potentiometer knob. The operating voltage is 3.3V-5V so it is suitable for a variety of microcontrollers like Arduino, ESP32, Teensy, ESP8266, Raspberry Pi, and others. It has strong adaptability to ambient light and it is fairly accurate to sense changes in the surrounding environment. Code: KY-032
Check the datasheet of any IC No. on www.alldatasheet.com

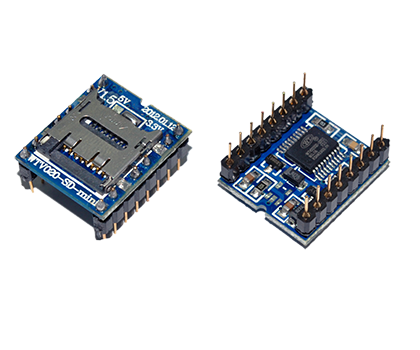

U-DISK AUDIO PLAYER SD CARD MP3 VOICE MODULE The WTV020SD is a small, simple IC for embedding audio-playback into your next project. This audio module allows you to access the functionality of the WTV020SD to give a voice to your next project. The module includes a battery connector and a micro-SD card slot. Simply load your audio files onto a micro-SD card and plug it in, power up the module and trigger the playback. Playback can be triggered in either key or serial mode: The key-mode provides a stand alone operation where a host microcontroller is not required. With only 3 push buttons, a 3V battery and a speaker, an extremely compact and low component count MP3-Player like system can be implemented. The serial-mode provides a simple, 2-wire interface to any micro-controller via its DATA and CLK lines. Audio operations such as PLAY, PAUSE, STOP and VOLUME control functions are all available to the host micro via simple serial commands. The audio compression used in this module is a little strange (4-bit ADPCM @ 6-32kHz) so you’ll need to use a software in order to convert your .WAV files into the 4-bit ADPCM format required.

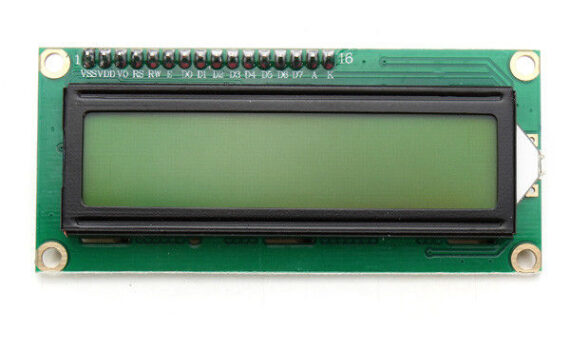

ARDUINO GREEN BACKLIGHT LCD DISPLAY MODULE It is another great yellow-green backlight LCD display. As the pin resources of Arduino controller is limited, your project may be not able to use normal LCD shield after connected with a certain quantity of sensors or SD card. However, with this I2C interface LCD module, you will be able to realize data display via only 2 wires. If you already has I2C devices in your project, this LCD module actually cost no more resources at all. It is fantastic for Arduino based project. Code: WH1602 IIC/I2C

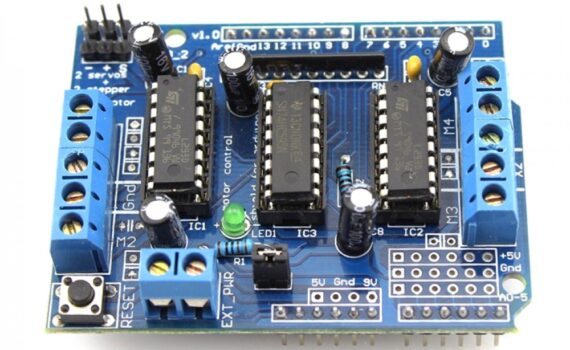

ARDUINO MOTOR DRIVER SHIELD The shield contains two L293D motor drivers and one 74HC595 shift register. The shift register expands 3 pins of the Arduino to 8 pins to control the direction for the motor drivers. The output enable of the L293D is directly connected to PWM outputs of the Arduino Code: L293D SHIELD
