Description

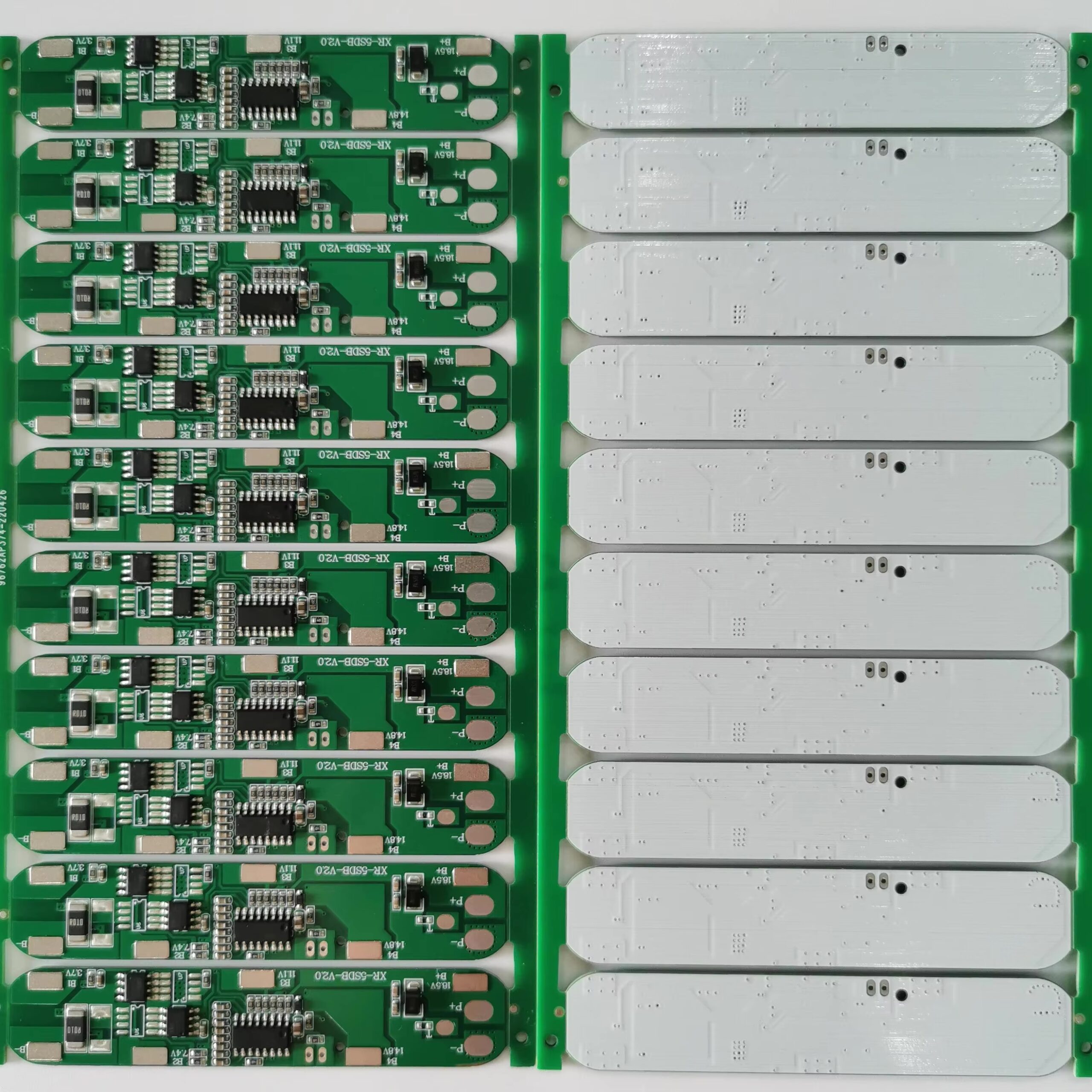

BMS Specifications:li-ion 5S 10A
Charging voltage:N*4.2V

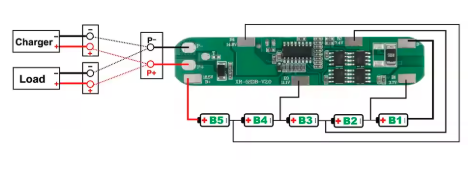

Wiring:Common Port
Discharge current:10A
Charging current:5A
Main circuit conduction internal resistance:≤15mΩ
Discharge overcurrent protection: 10A
Product Size:87*17*2.8mm
cable: /
Overcharge protection
Detection voltage:4.25V±0.025V
Detection delay:100±50MS
Release voltage:4.15±0.05V
Over-discharge voltage protection
Detection voltage:2.7±0.1V
Detection delay:100±50MS
Release voltage:3.0±0.1V
Short circuit protection
Trigger condition:external short circuit
Detection delay:<350us
Release condition:disconnect the load
Disconnection protection
Trigger condition: Any set of battery cables is disconnected,cut off output and input
Release condition: restore the cable connection
Self-consumption
Working power consumption:<20UA
Sleep over-discharge power consumption:<10UA
Working temperature range:-30°~+80°C
