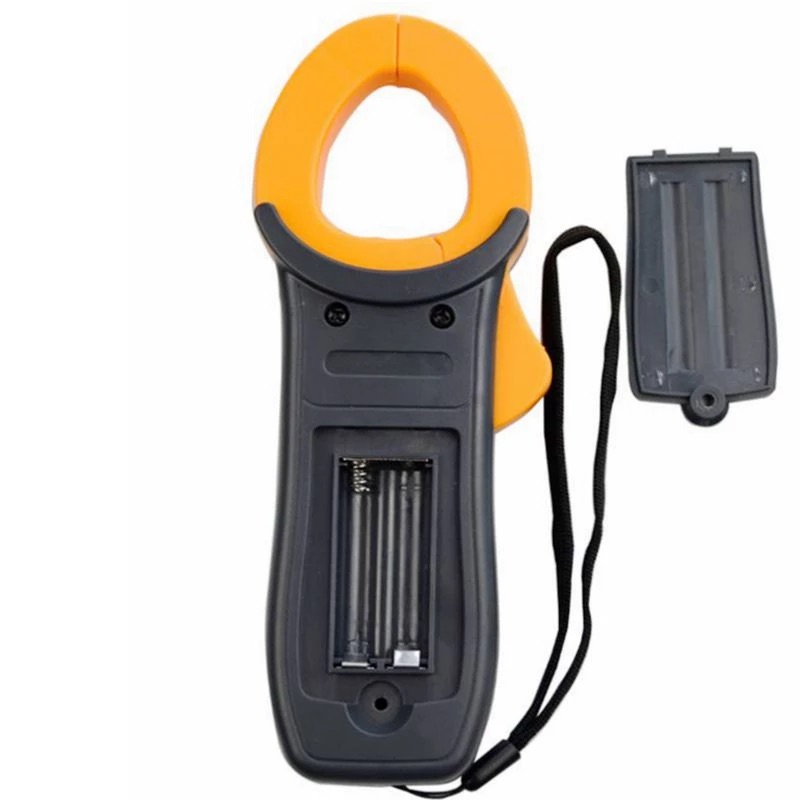

TY 3266TD Pocket Universal Digital Clamp Meter – Multimeter – Ammeter – Measure Capacitance – Temperature And Frequency
CLAMP METER + NCV + HZ
3266TD pocket universal digital clamp meter, multimeter, ammeter, measure capacitance, temperature and frequency.
AC current: 400A file (0-400A) (200A / 400A) Auto range ± (2% rdg ± 4dgt)
2 / 20A (0-20A) Auto range 2A file ± (3% rdg ± 3dgt)
2 / 20A (0-20A) 20A-speed automatic range ± (2% rdg ± 3dgt)
AC voltage: 2V-20V-200V-600V automatic range ± (1.2% rdg ± 3dgt)
DC Voltage: 200mV-2V-20V-200V-600V automatic range ± (0.8% rdg ± 3dgt)
DC Resistance: 200Ω-2kΩ-20kΩ-200kΩ-2MΩ-20MΩ auto range ± (1.2% rdg ± 3dgt)
Temperature: -20 C – + 750 C (-4 F – + 1400 F) ± (3% rdg ± 5dgt)
Diode test
Conduction test
Jaw opening product size:> 25mm
Display: 3 1/2 digit LCD (2000 count)
Auto Range
High voltage protection
Data Hold
Maximum hold
“FUNC” button
Non-contact AC electric field detector
Over-range
Low battery indication
Automatic shutdown
Power: 1.5V battery No. (7) * 2
Size: 183 (L) * 47 (W) * 25 (H); Weight: 165g
Safety Standards: CAT III 600V
Code: 3266TD
