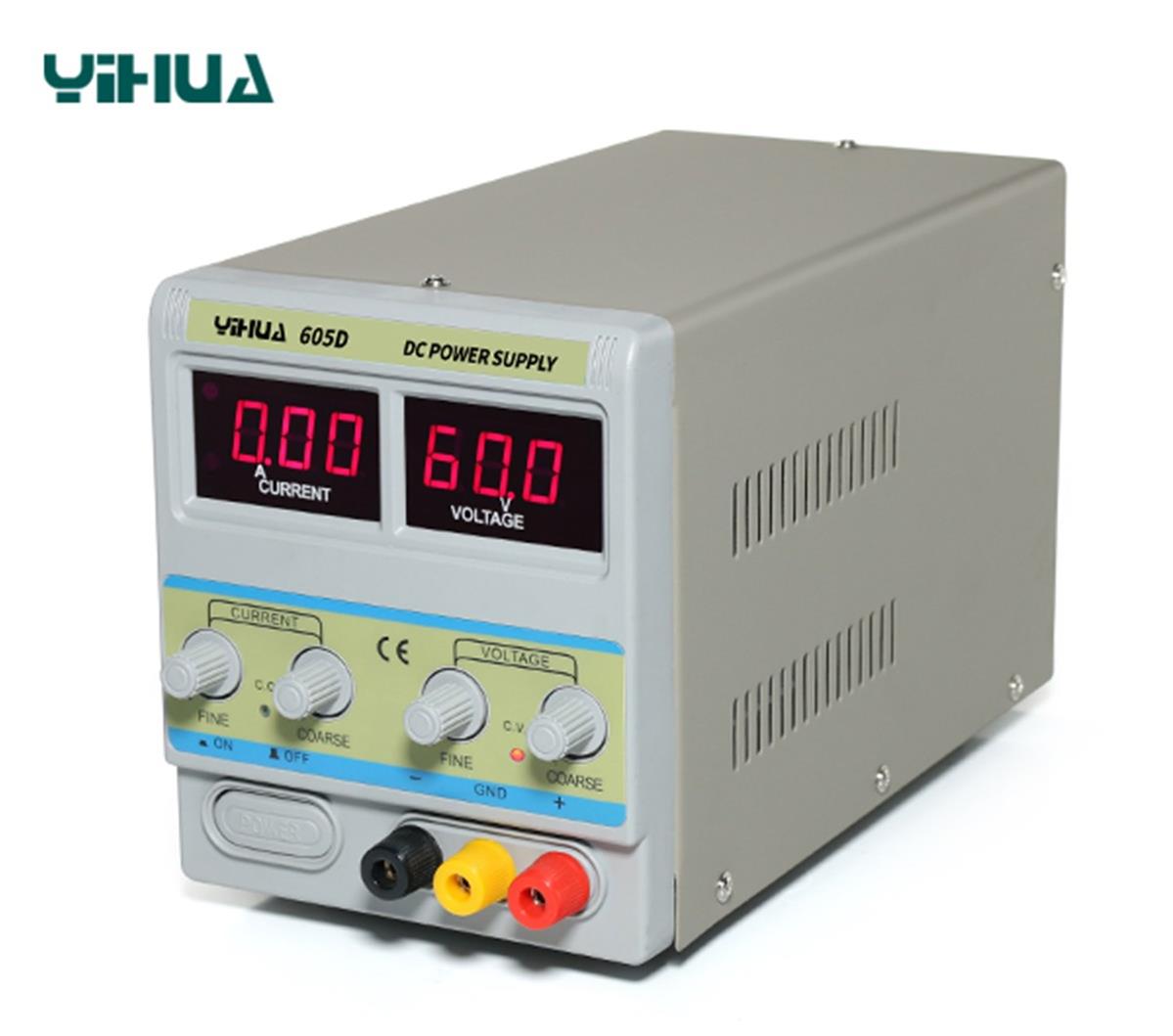

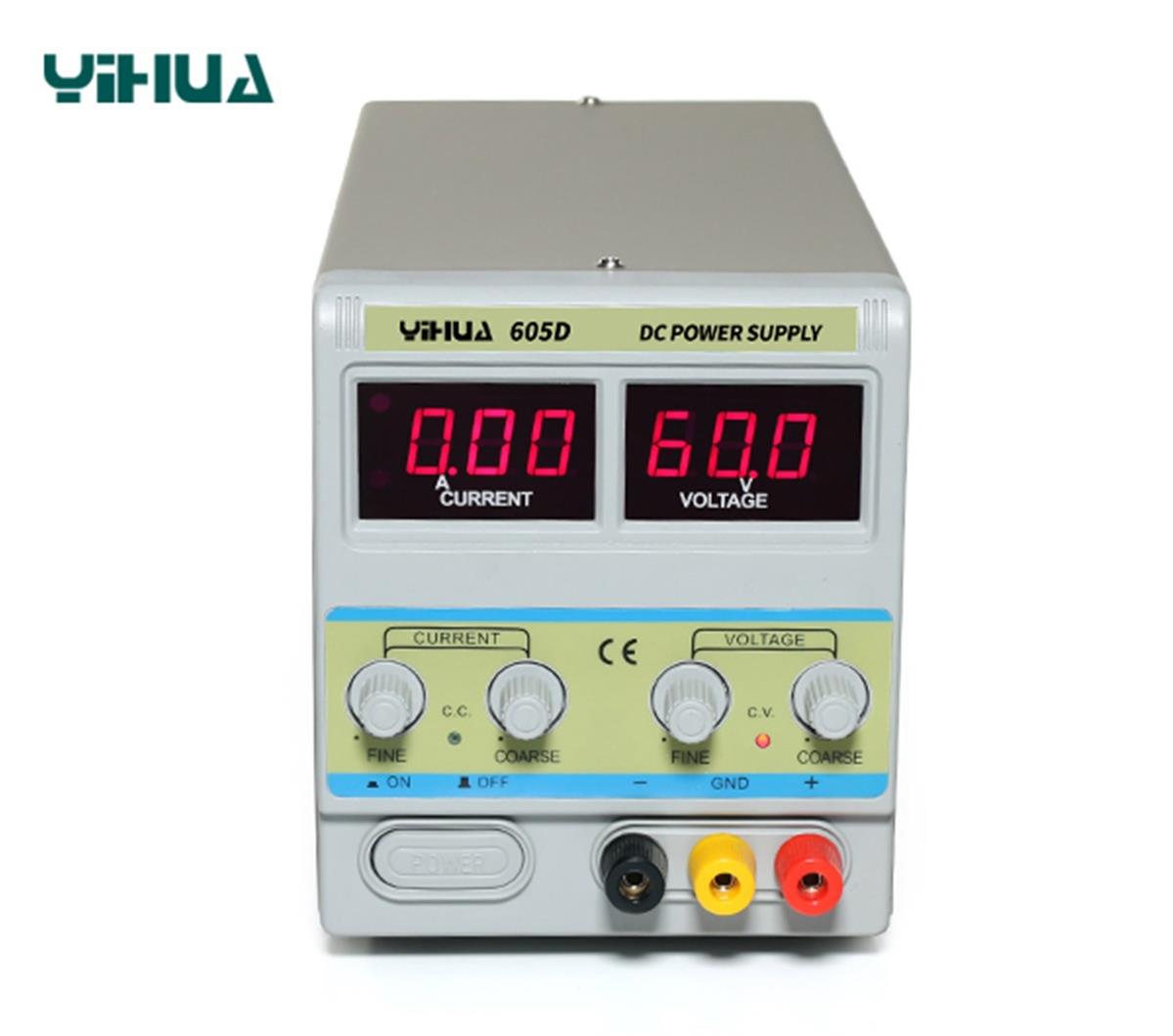

Yihua 605D Adjustable 60V 5A DC Power Supply

Yihua 605D Adjustable 60V 5A DC Power Supply  is a single line output of DC stabilized power supply. The output voltage and current can be adjusted continuously within the nominal range. Constant voltage and constant current (CV / CC), automatic switching of operating modes. Dual digital display shows output voltage and current independently. Various protection functions include current limiting, voltage reduction, short circuit protection, over temperature protection, etc. takes place

Code: 605D

Categories: , , , Tags: , , , ,

Description

Yihua 605D Adjustable 60V 5A DC Power Supply  Technical Specifications are as follows;

  • OUTPUT VOLTAGE: Continuously adjustable between 0 ~ 60V
  • OUTPUT CURRENT : Continuously adjustable within 0 ~ 5A / (current limitation setting above 0.2A)
  • OUTPUT POWER: 300W
  • SOURCE EFFECT: 1mV
  • LOAD IMPACT: ≤0.33%
  • FLUCTUATOR NOISE: ≤3mVrms (5Hz ~ 1MHz) / ≤3mArms
  • DISPLAY ACCURACY: 0.1V / 0.1A / 1mA
  • PROTECTION MODE: Overcurrent, short circuit, overtemperature protection
  • DIFFUSION MODE: Air cooling
  • WORKING ENVIRONMENT: 0 ~ 40°C relative humidity <80%
  • STORAGE TEMPERATURE: -20 ~ 80°C relative humidity <80%
  • DIMENSIONS: 255*130*150mm
  • WEIGHT: 6.1 kg

Additional information

Voltage

Current

Power
