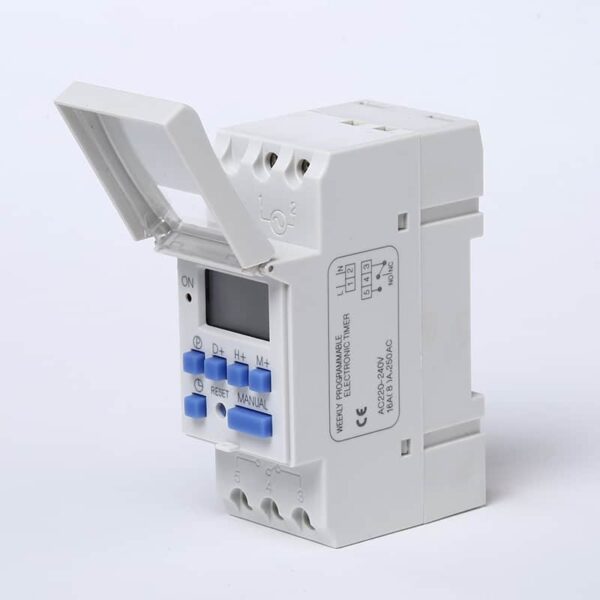

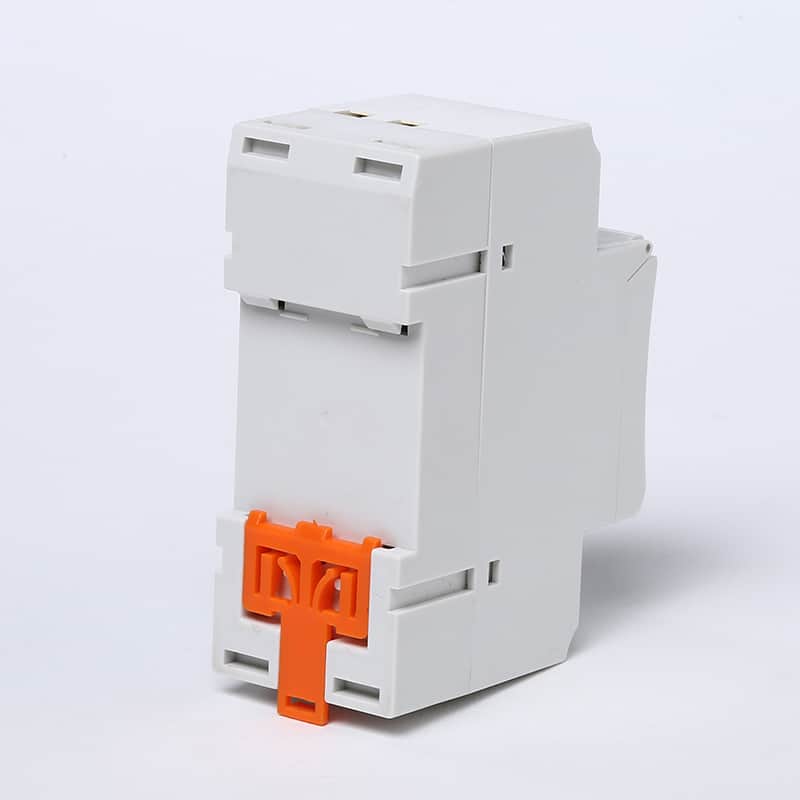

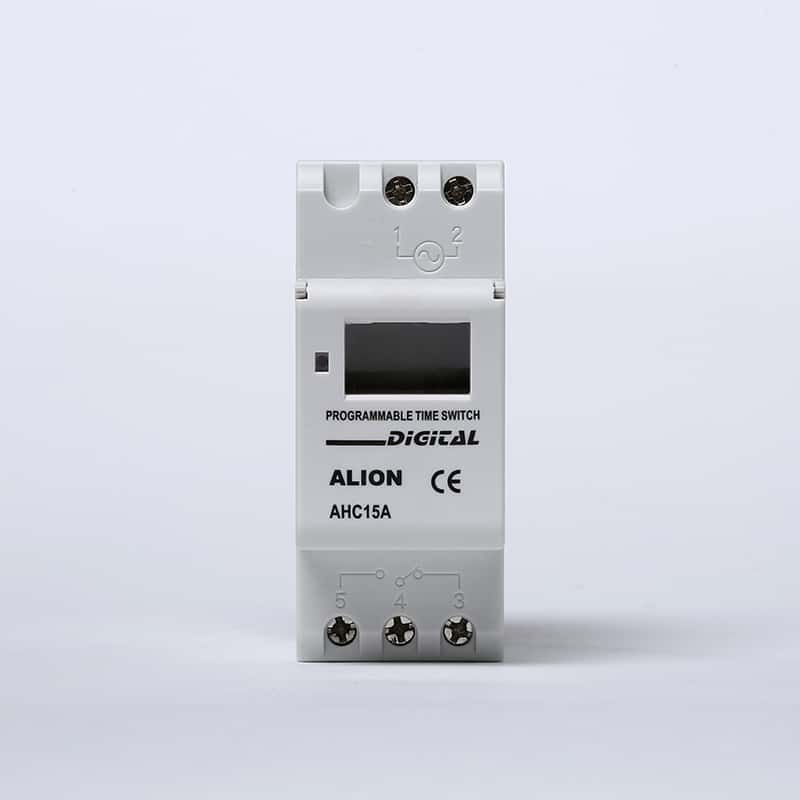

AHC15A series Weekly Digital Time Switch

WEEKLY PROGRAMMABLE TIMER

The AHC15A services are a cost-effective choice, there are very diverse features and flexible installation, and a wide range of applications.

1 channel
Daily and weekly program
20 ON/OFF program
20 pulse programs(1s~59m59s)
Countdown program(1s~59m59s)
12/24 hour format conversion
Calculated switching times
Integrated operating hour counter
Auto-correct time(-30 sec ≤△t≤30 sec)
Preset date and time
Permanent switching ON/OFF
Integrated operating hour counter
Built-in lithium battery, power failure memory

Manual

Datasheet

Code: AHC15A

Description

Product Selection

Voltage	AC/DC 12V or AC/DC 24V or AC 110V or AC220V
Frequency	50Hz or 60Hz
Terminal	3 or 5
Switching capacity	16A or 20A

Maximum Recommended Load (10,000 operations)

Filament / Halogen lamp 230V	Energy-saving lamps	LED lamp < 2 W	LED lamp 2–8 W	LED lamp > 8 W	Fluorescent lamp load (electronic ballast)
2600 W	170 W	30 W	100 W	120 W	650 W

Technical Data

Fluorescent lamp load (conventional) not corrected	1000VA
Fluorescent lamp load (conventional)series-corrected	1000VA
Fluorescent lamp load (conventional)parallel-corrected	730 VA 80μF
Minimum interval	1 Min.
Time accuracy at 25 °C	≤± 2 Sek./day (quartz)
Housing and insulation material	Self-extinguishing thermoplastic
Type of protection	IP 20
Class of protection	II according to EN 60 730-1
Permitted ambient temperature	-10 ~ +50 °C (non-icing）
Test approval	CE

Application

AHC15A digital timer switch fits for the particular use of the following tasks: Illumination of private and industrial areas, street and shop-window lighting, regulation of air conditioning, flushing, motors, pumps, plants, and machinery as well as to simulate presence, etc.
