Description

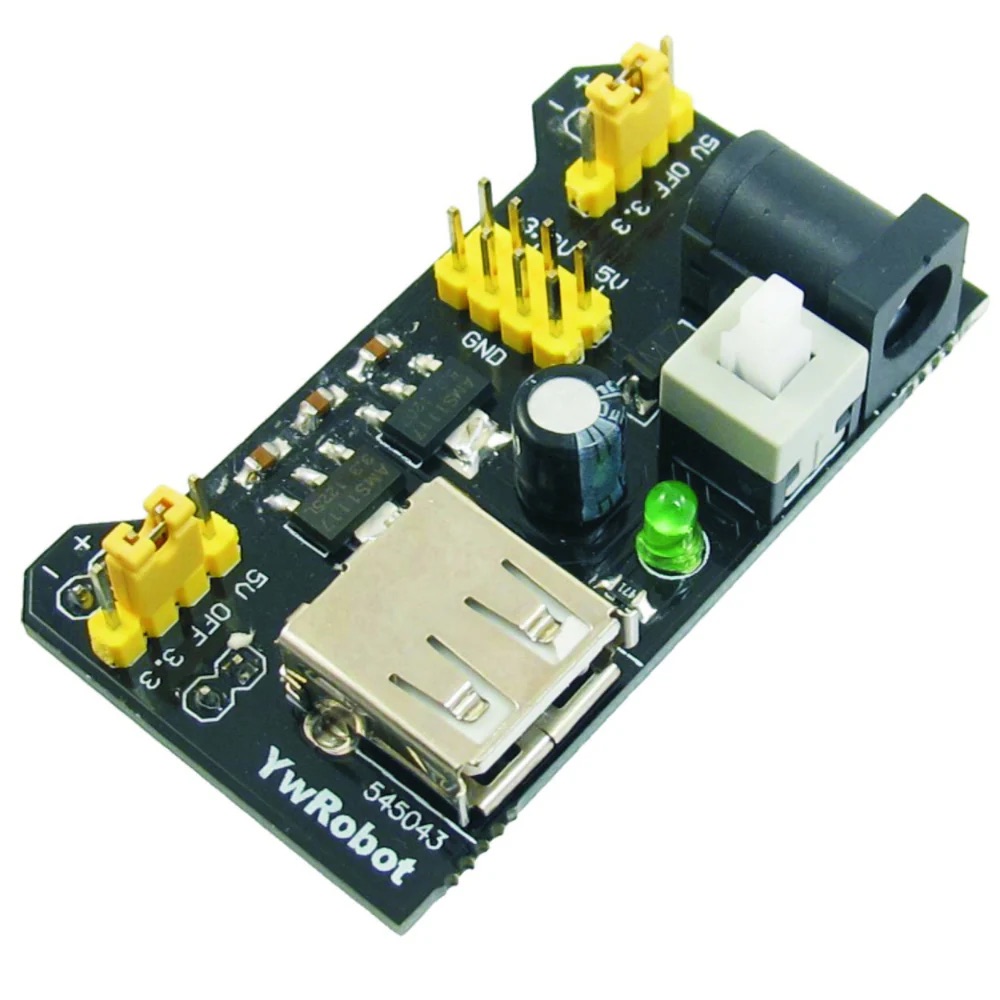

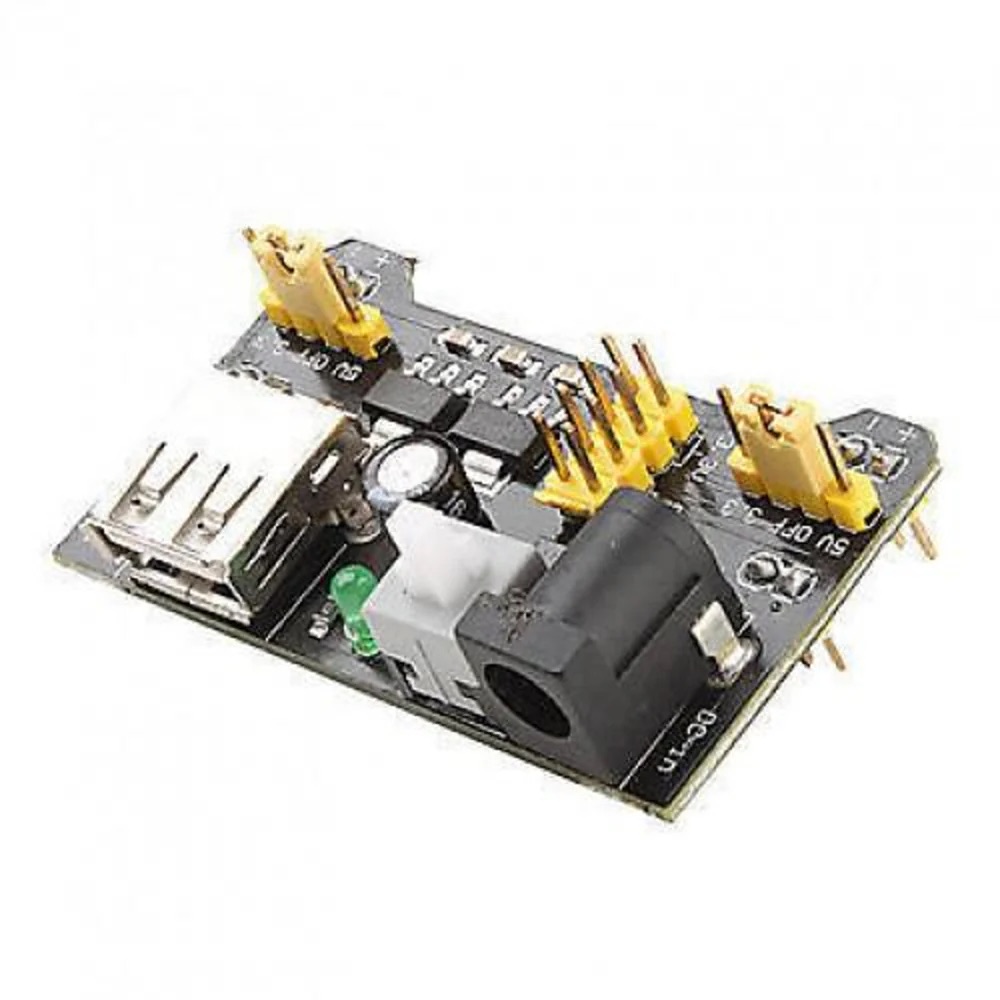

This is a 3.3V/5V MB102 Breadboard Power Supply Module which provides a dual 5 V and 3.3 V power rails and has a multi-purpose female USB socket.
The 3.3V/5V MB102 Breadboard Power Supply Module securely fits in a standard 400 or 800 tie points breadboard it also features reverse polarity protection, the module can take 6.5V to 12V input and can produce 3.3V and +5V.
The module can also output 5V on USB connector or input through the USB connector. It’s a must-have product for experimenters those have to test/prototype electronic circuits on the breadboard.
Technical Details
- Item Type: Breadboard
- Max Output Current: <700 mA
- Length: 53 mm
- Width: 32 mm
- Height: 23 mm
- Weight: 8 g
Features
- Breadboard power supply module.
- Compatible with 5V and 3.3V.
- Works with MB102 breadboard.
- Switchable output: 0V, 3.3V, 5V.
- Two groups of 3.3V, 5V DC output pins.
Applications :
- Prototyping: Provides stable 3.3V or 5V power to breadboard circuits during prototyping.
- Arduino Projects: Powers Arduino boards and other components during development and testing.
- Embedded Systems: Supplies power to small embedded systems for testing and experimentation.
- Sensor Projects: Powers sensors and modules in various DIY electronics projects.
- Robotics: Provides reliable power to motors, sensors, and control boards in robotic projects.
- Educational Kits: Used in learning environments for electronics and programming demonstrations.

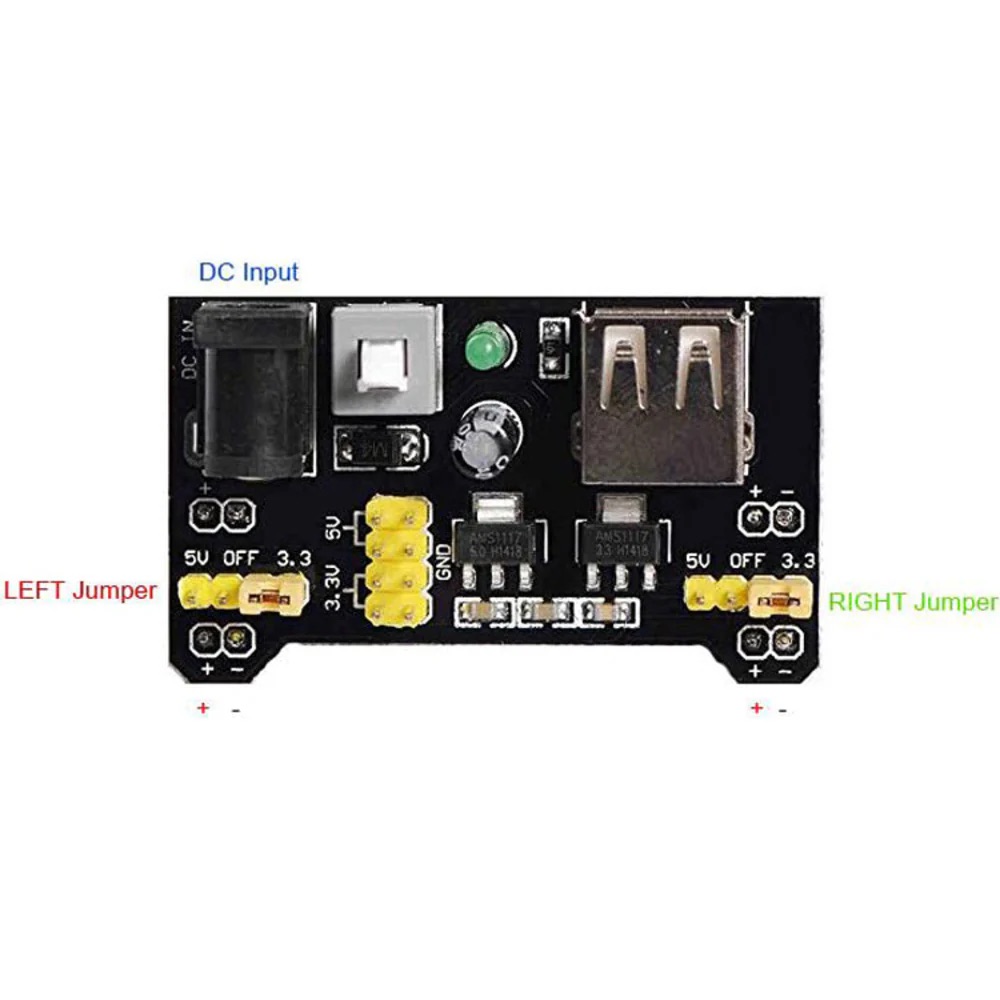

Pin Description
- LEFT Jumper : 5V, OFF (0V), 3.3V Selection
- RIGHT Jumper : 5V, OFF (0V), 3.3V Selection
- 4-Berg Header : GND
- 2-Berg Header : 3.3V
- 2-Berg Header : 5V
Physical Attributes
- Length: 53 mm
- Width: 32 mm
- Height: 23 mm
- Weight: 8 g
