Description
| Connection type head A | Female connector, M12, 4-pin, angled, A-coded | ||||
| Connection type | Screw-type terminals | ||||
| Connector material | PBT | ||||
| Connector color | Black | ||||
| Locking nut material | CuZn | ||||
| Tightening torque | 0.6 Nm | ||||
| Shielding | Unshielded | ||||
| Permitted cross-section | ≤ 0.75 mm² | ||||
|
|||||
| Current loading | 4 A | ||||
| Authorizations | UL | ||||
| UL File No. | E335179 | ||||
| Enclosure rating | IP67 | ||||
| Description | Head A: female connector, M12, 4-pin, angled, unshielded, for power supply, for cable diameter 3 mm … 6.5 mm Head B: – | ||||
|
|||||
Technical drawings

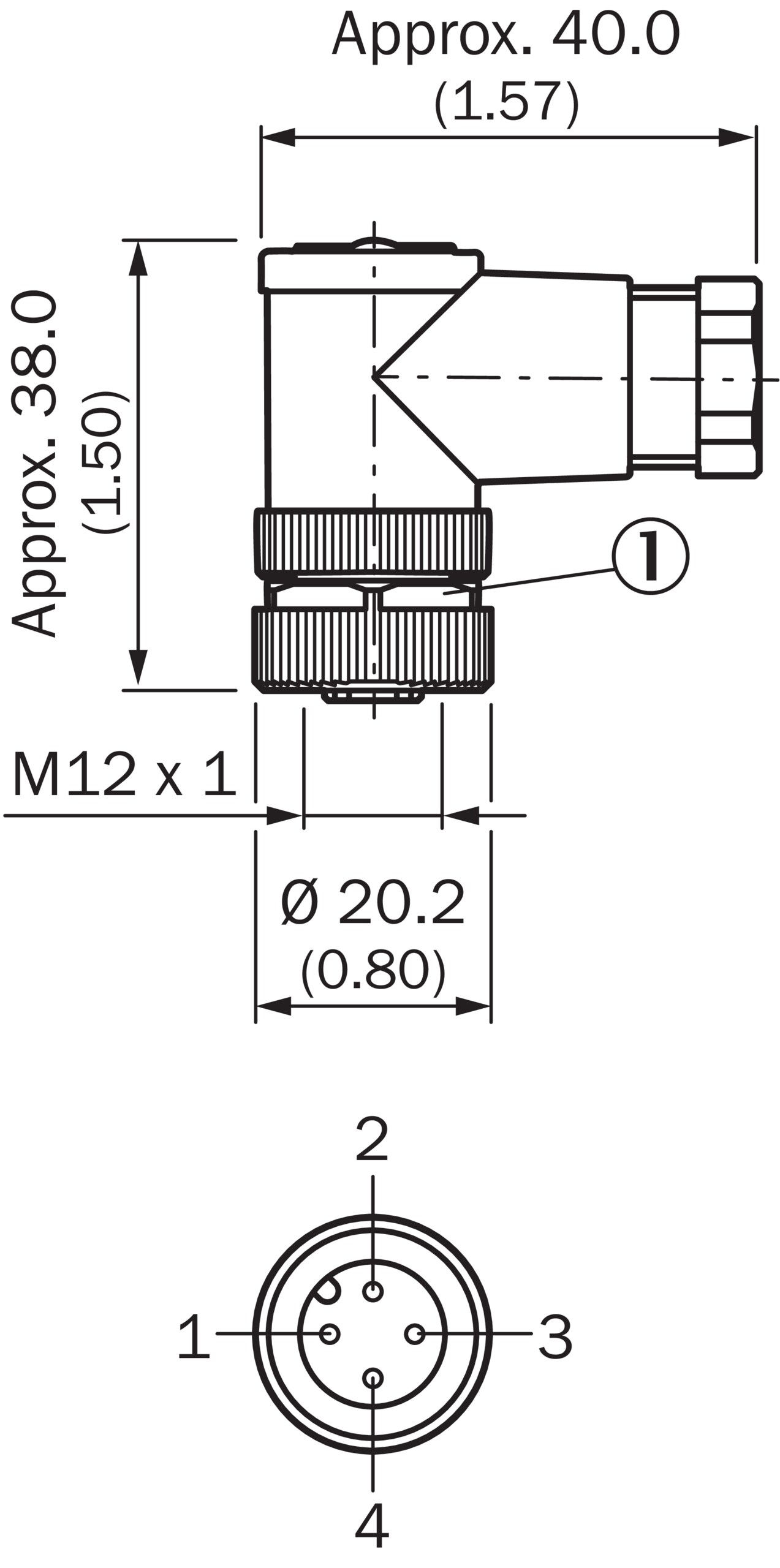

Dimensional drawing
Installation drawing
