Description

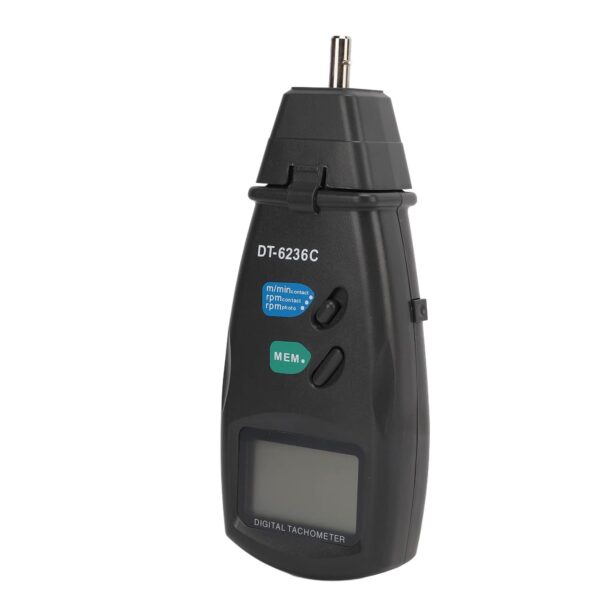

Item Type: Tachometer
Material: ABS
Model: DT6236C
Purpose: Speed measurement of Tire Bearing Blades
Battery: 1.5V 4 x AA Battery(Not Included)
Basic Parameters:
Measuring Range: Tach 0.5 to 19999RPM
Speed (m/min): 0.05 to 1999.9m/min
Length (m): 0.05 to 99999m
Resolution:
Tachometer: 0.1RPM (0.5 to .9RPM)
1 RPM (over 1000 RPM)
Speed: 0.01m/min (0.05 to 99.99m/min)
0.1 M/min ( 100m/min)
Length: 0.02m (0.05 to 999999m)
Measuring Range: 2.5 to 99999RPM
Resolution: 0.1RPM (2.5 to .9RPM)
1RPM (Over 1000 RPM)
Total Test Range: 1 to 99999

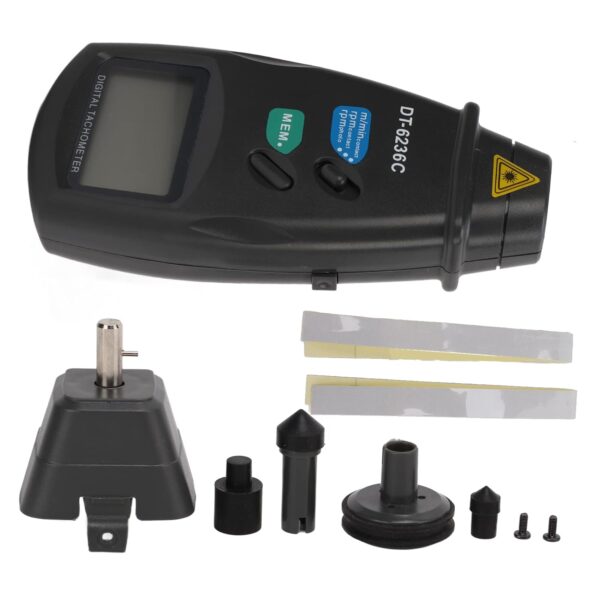

Package List:
1 x Tachometer

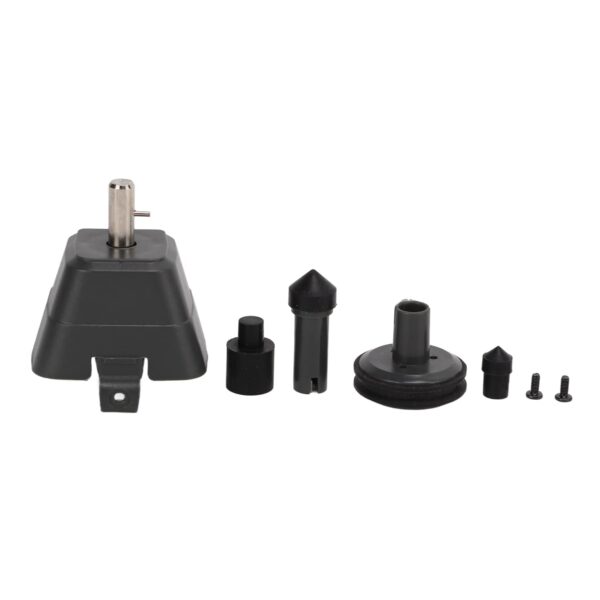

4 x Speed Accessories
2 x Speed Reflector
2 x Screw
1 x Manual
How to Use:
Measurement procedure
(1) speed measurement

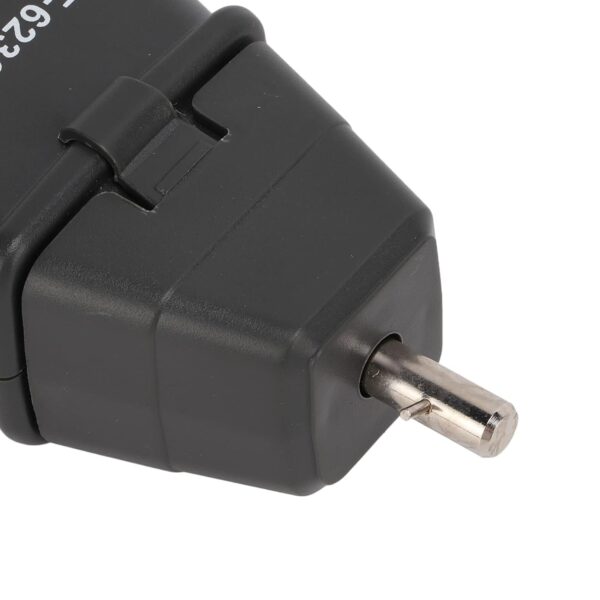

a Slide the function switch to the “rpm” position. Install the correct RPM adapter on the shaft.
b. Press the MEASURING button and gently press the RPM ADAPTER on the center hole of the rotating shaft. to maintain alignment. Release the MEASURING BUTTON when the display reading stable
(2) speed measurement
a. Slide the function switch to “m/min” and install the speed wheel on the shaft instead of the RPM adapter
b. Press the measurement button and simply connect the speed wheel to the detector. Release the MEASURING BUTTON when the display reading stabilizes.
(3) length measurement
a. Slide the function switch to “m” and use the corresponding part. Others are the same as (2).
