Resolution up to 1920*1080@60Hz (For 60M UTP)
Support TMDS equalization and enhancement
Support EDID pass through via LAN, for best compliance with most display devices
Support IR signal pass through via LAN

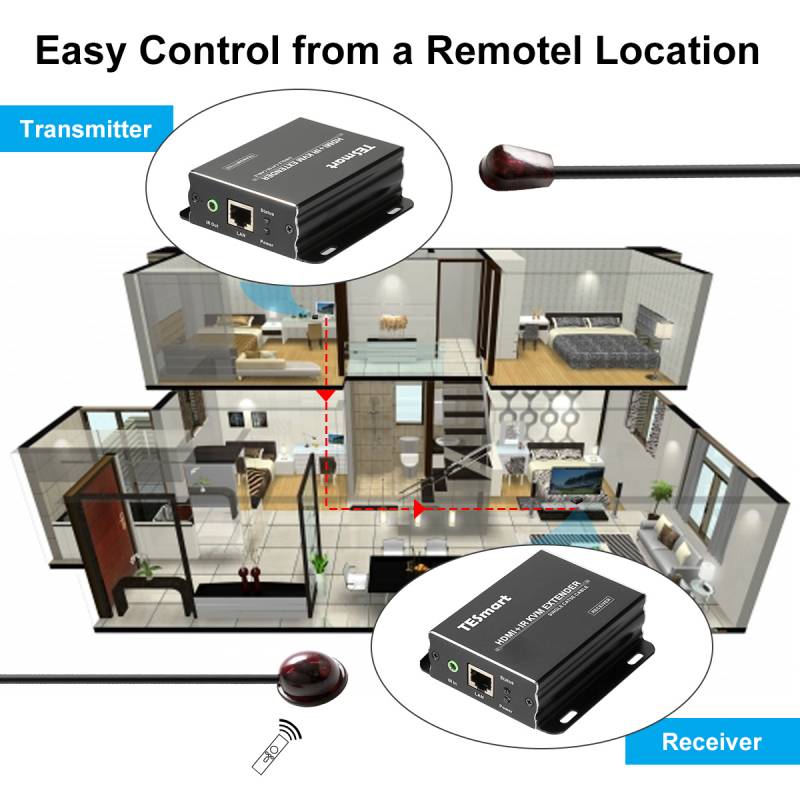

By transmitting keyboard and mouse data via LAN, it is easy to control PC remotely

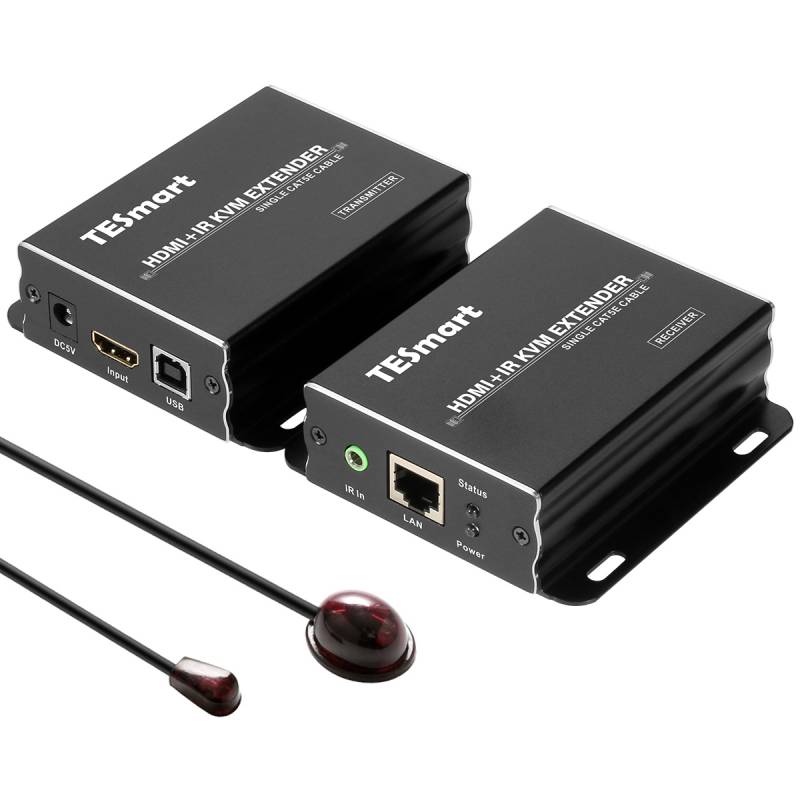

| 1. DC 5V Input | 7. IR receiver port |
| 2. HDMI input port | 8. UTP cable connection port |
| 3. USB connection port(To computer) | 9. LED indicators of power and connection status |
| 4. IR transmitter port | 10. DC 5V Input |
| 5. UTP cable connection port | 11. HDMI output port |
| 6. LED indicators of power and connection status | 12. USB keyboard and mouse input |
| HKE0611A10 | 60M HDMI KVM+IR Extender | |
| Technical | ||
| Data rate | 10.2 Gbps | |
| Max. Resolution | 1920*1080@60Hz ( For 60M UTP cable) | |
| ESD protection | Human body model – ±8kV (Air-gap discharge) | |
| Input | Transmitter: 1* HDMI Type A
Receiver: 1* RJ45, 1* AUX (For IR in), 2* USB Type A (Keyboard & mouse) |
|
| Output | Transmitter: 1* RJ45, 1* USB Type B, 1* AUX(for IR out)
Receiver: 1* HDMI Type A |
|
| Mechanical | ||
| Chasing material | Aluminum Alloy | |
| Power supply | DC 5V 1A | |
| Operating/Storage temperature | 0 to 70 degree/-40 to 85 degree | |
| Operating Humidity | 10 to 90% RH | |
| Product
|
Dimension | RX: 91 (L) x 90 (W) x 30 (H) mm TX: 91 (L) x 90 (W) x 30 (H) mm |
| Weight | TX:142.5 RX:143.4 |
|
| Item
|
Dimension | 672g |
| Weight | 245 (L) x 135 (W) x 90 (H) mm | |
| Carton
|
Dimension | 515 (L) x 285 (W) x 470 (H) mm |
| Quantity | 20pcs | |
| Total Weight | 14.29kg | |

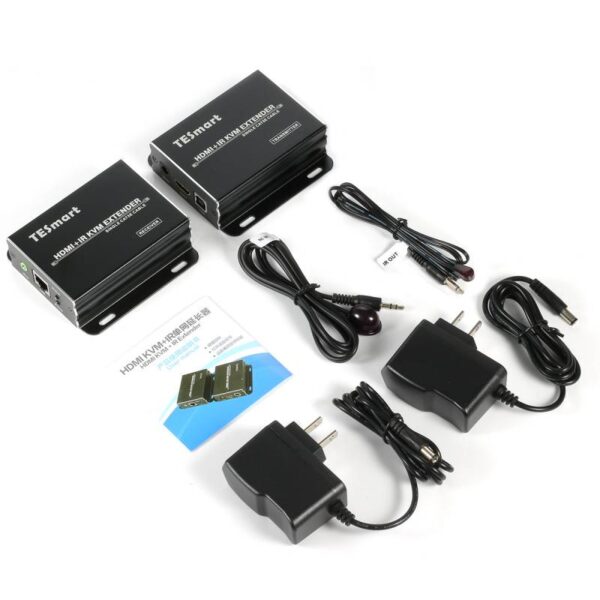

Packing List
1 * HDMI KVM transmitter
1 * HDMI KVM receiver
1 * IR Transmitter Cable
1 * IR Receiver Cable
2 * DC 5V 1A Power Adapter
1 * User Manual
