LM06-3001PA

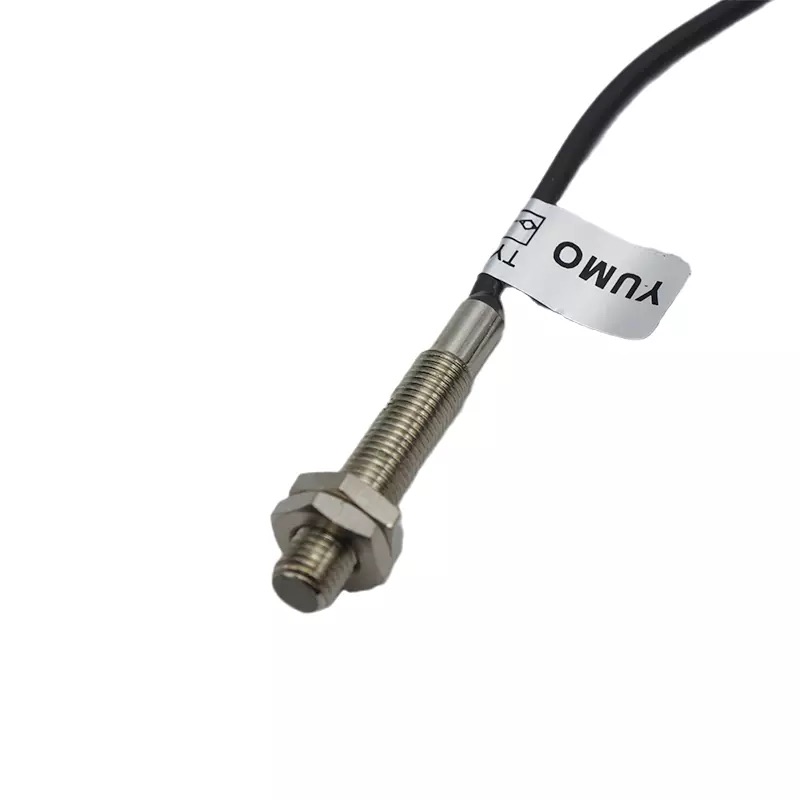

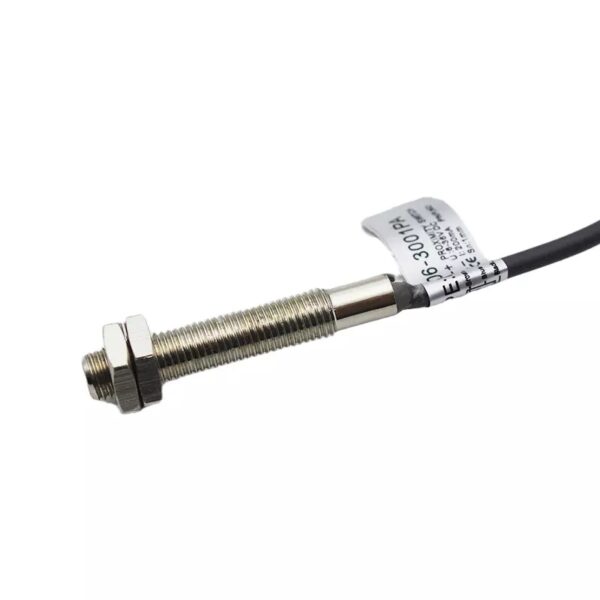

DC6-36V 0.7mm Flush PNP NO proximity switch LM06-3001PA

Inductive proximity sensor
Used in harsh working environment, it can withstand all kinds of cutting fluids and has the effects of waterproof and oil proof. Protection grade IP67. Installed in metal, flush or non flush, it can realize three wire npn/pnp, normally open / normally closed output; Two wire normally open / normally closed output, four wire npn/pnp one open one closed output, five wire relay output. There are various models, and the power supply voltage can be 6-36v/15-36 DC power supply; 380V, 20 ~ 250V, 90 ~ 250V AC power supply, 20 ~ 250V AC and DC power supply. Solid brass, nickel plated shell / plastic shell, inner shell sealed with process polymer, LED status red indicator.

Datasheet

Category: Tags: ,

Advantages of proximity switches

1.Compact volume

2.High precision of repeated location

3.Diversified exterior structures

4.Good performance of anti-interference

5.Many output forms

OVERALL DIMENSIONS
DETECTION   DISTANCE                                1mm
Flush NPN NO LM06-3001NA
DC NC
10- NO+NC
30 PNP NO LM06-3001PA
VDC NC
NO+NC
NO
AC two wire
90- system NC
250 SCR Control-lable silicon NO
VAC
NC
NO+NC
DETECTION   DISTANCE                            1.5mm
Non-Flush NPN NO
DC NC
10- NO+NC
30 PNP NO
VDC NC
NO+NC
two wire   system NO
AC
90- NC
250 SCR Control-lable silicon NO
VAC
NC
NO+NC
Relay output
Control output DC 200mA
SCR/ Relay
Output voltagc   dropDC/AC DC<3V、AC<10V
Consumption current DC<15mA、AC<10mA
Standard detected   object 8X8X1(A3 iron)
Repeated precision 0.01
DC/AC 500Hz
Working   environment temperature -25℃～+70℃
Insulation   resistance 50MΩ
Shell material Metal
Protection grade IP67
Sensing Range

Sensor Type

,

Diameter

Voltage

,

Current

Polarity
