Description

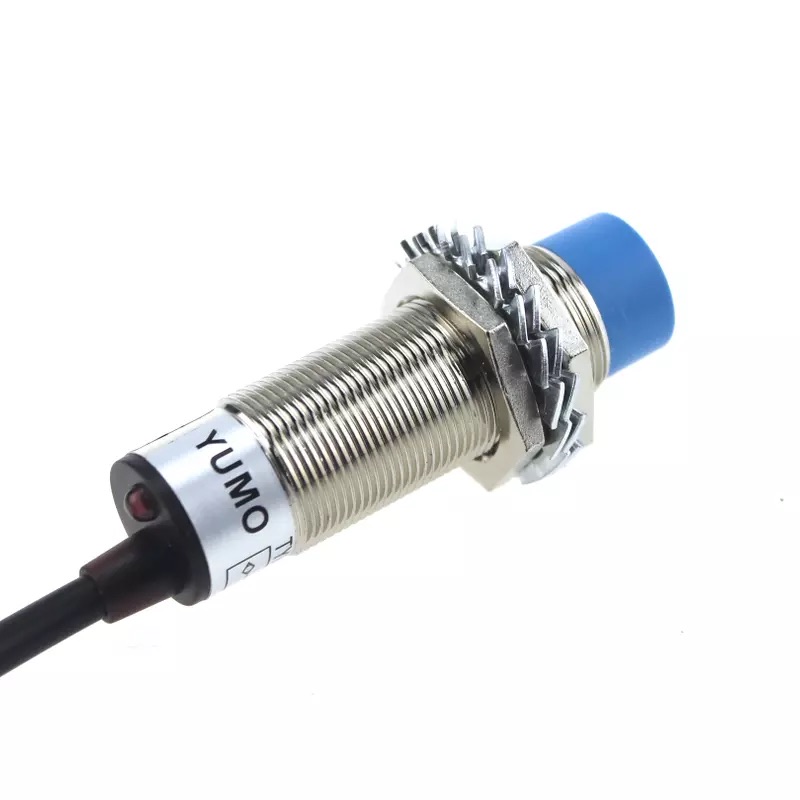

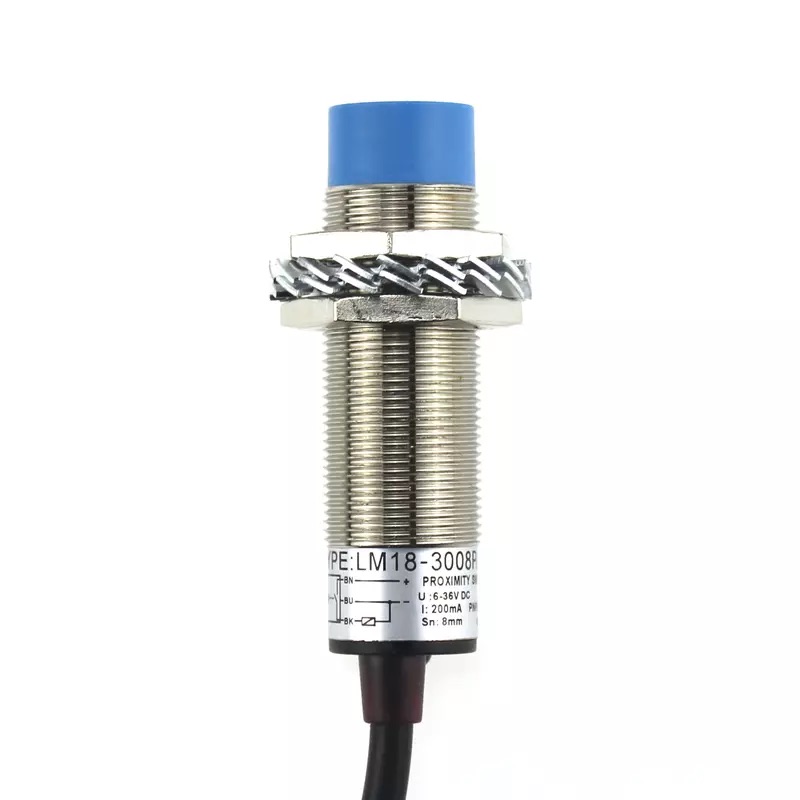

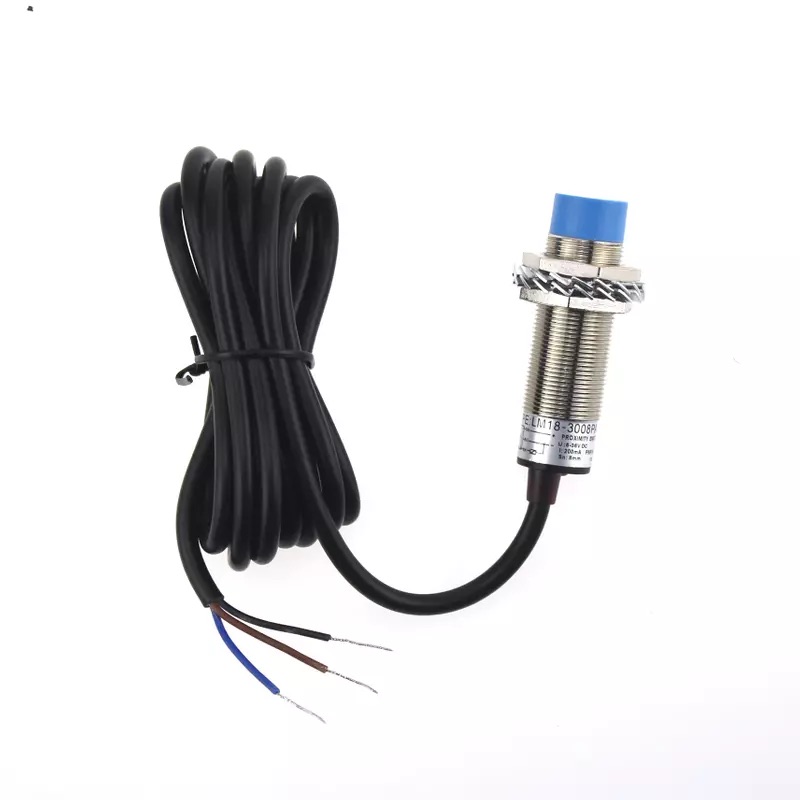

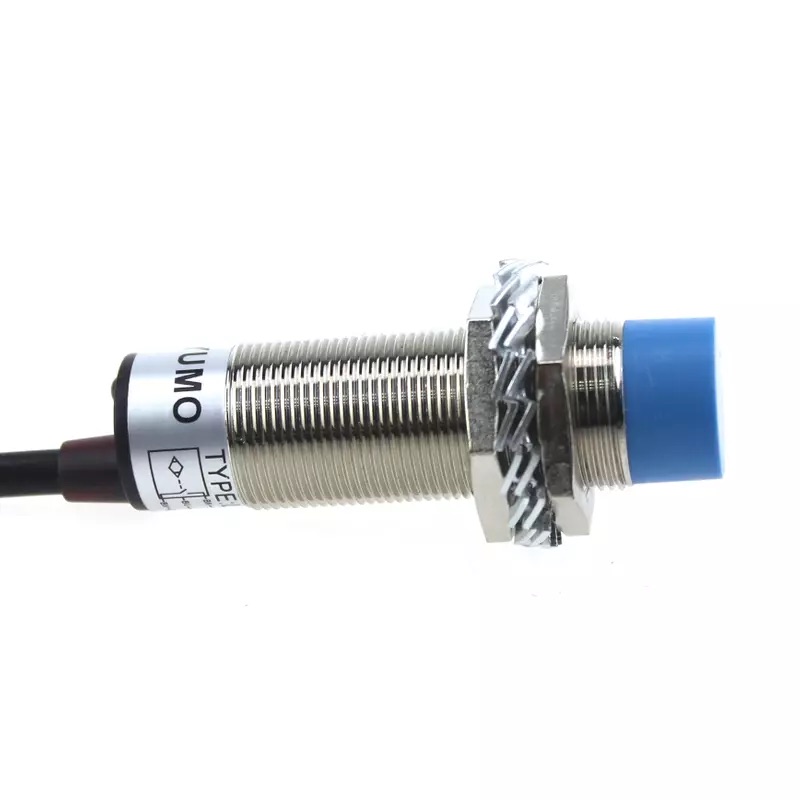

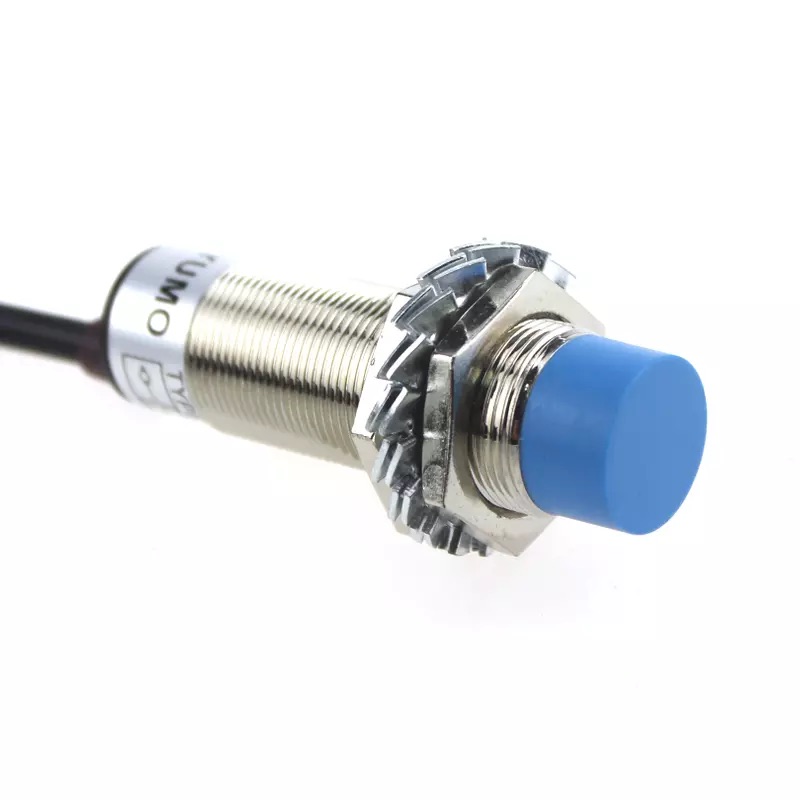

LM18-3008NA series cylinderical inductive proximity switch
Outside diameter 18mm cylinder inductive proximity switch, sensing range from 5mm~8mm .
| Detecting rang 5mm | YUMO part no. | other part no. | OMRON Omron part no. | Autonics Part no. | |||
| Flush | DC | NPN | NO | LM18-3005NA | LJ18A3-5-Z/BX | E2E-X10ME1 | PR18-5DN |
| NC | LM18-3005NB | LJ18A3-5-Z/AX | E2E-X10ME2 | PR18-5DN2 | |||
| NO+NC | LM18-3005NC | LJ18A3-5-Z/CX | |||||
| PNP | NO | LM18-3005PA | LJ18A3-5-Z/BY | E2E-X10MF1 | PR18-5DP | ||
| NC | LM18-3005PB | LJ18A3-5-Z/AY | E2E-X10MF2 | PR18-5DP2 | |||
| NO+NC | LM18-3005PC | LJ18A3-5-Z/CY | |||||
| 2 Wires | NO | LM18-3005LA | LJ18A3-5-Z/EX | ||||
| NC | LM18-3005LB | LJ18A3-5-Z/DX | |||||
| AC | SCR | NO | LM18-2005A | LJ18A3-5-J/EZ | E2E-X10MY1 | PR18-5AO | |
| NC | LM18-2005B | LJ18A3-5-J/DZ | E2E-X10MY2 | PR18-5AC | |||
| NO+NC | LM18-2005C | LJ18A3-5-J/EZD | |||||
| Relay output | |||||||
| Detecting rang 8mm | |||||||
| Non-flush | DC | NPN | NO | LM18-3008NA | LJ18A3-8-Z/BX | E2E-X10E1 | PR18-8DN |
| NC | LM18-3008NB | LJ18A3-8-Z/AX | E2E-X10E2 | PR18-8DN2 | |||
| NO+NC | LM18-3008NC | LJ18A3-8-Z/CX | |||||
| PNP | NO | LM18-3008PA | LJ18A3-8-Z/BY | E2E-X10F1 | PR18-8DP | ||
| NC | LM18-3008PB | LJ18A3-8-Z/AY | E2E-X10F2 | PR18-8DP2 | |||
| NO+NC | LM18-3008PC | LJ18A3-8-Z/CY | |||||
| 2 Wires | NO | LM18-3008LA | LJ18A3-8-Z/EX | ||||
| NC | LM18-3008LB | LJ18A3-8-Z/DX | |||||
| SCR | NO | LM18-2008A | LJ18A3-8-J/EZ | E2E-X10Y1 | PR18-8AO | ||
| NC | LM18-2008B | LJ18A3-8-J/DZ | E2E-X10Y2 | PR18-8AC | |||
| NO+NC | LM18-2008C | LJ18A3-8-J/EZD | |||||
| Relay output | |||||||
LM18 Sensor Characteristics
| Output current | DC | 200mA | |||||
| SCR/relay | 300mA | ||||||
| Output voltage drop | DC(NPN;PNP)<3V;2wires type:<3.9V;AC type: AC <10VDC< 3V ;AC< 10V | ||||||
| Consumption current | DC(NPN;PNP) 12V 8mA;24V 15mA; AC type:<10mA | ||||||
| Standard detected object | 18×18×1(A3 Iron) | ||||||
| Repeated precision | 0.02 | ||||||
| Response Frequency | 200Hz/25Hz | ||||||
| Working environment temperature | -25℃ ~+75℃ | ||||||
| Insulation resistance | 50MΩ | ||||||
| Shell material | Metal | ||||||
| Protection grade | IP67 | ||||||
| Alternative model | E2E-X18M□ | ||||||
