Designed by experienced engineers, these male and female connectors are ideal for any type of photovoltaic solar panels. Made to last using superior materials, the solar panel connectors will help you to connect any system with high mechanical requirements. The silver-plated copper terminal ensures better connectivity and enhanced resistance.
|
|
|
|
|---|---|---|
Easy to AssemblePress your fingers to the either side of the built-in lock on the male wires solar connectors can connect and disconnect the mc4 connector easily without using other mc4 tool. |

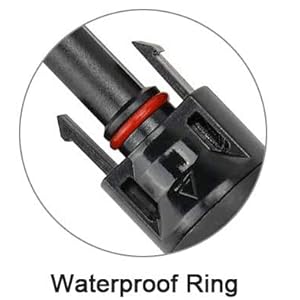

IP67 WaterproofAn IP67 waterproof ring on the male solar cable connector adapter is perfect to seal out water and dust to prevent corrosion. |
Durable QualityMade with PPO material, the contact is made with Copper, silver plated. Premium material makes sure that it can keep working stably in temperature from -40℉ to 194℉ |
Some of the amazing features of this product:
- Rated current: 50A
- Maximum voltage: 1500VDC (IEC) 800VDC(UL;)
- Maximum temperature between -40 °C to 90 °C
- Degree of protection: IP67mated | IP2X umate
- Contact Resistance of plug connectors: 0.5m Ω
- Contact material: copper, tin plated
- Locking system plug connectors: Snap-in (nur-only MC4)
- Flame class : UL94-HB/UL94-V0
- Cable size 2.5mm², 4mm², 6mm²
- Waterproof protection class: IP67
- Made with premium-quality materials
- Resistant to dust buildup
- Your photovoltaic solar system is well installed with our solar panel connectors!
