Description
ME201W
ME201R
|
Product Name
|
Fluid Level Monitor
|
|
Application
|
Water /Oil Tank
|
|
Usage
|
Home Automation System
|
|
Operating Temperatures
|
-20-70℃
|
|
Operation System
|
Android,lOS APP,Remote Control
|
|
APP
|
Tuya SmartLife
|
|
RangeMeasuring
|
0.1m~4.0m
|
|
Accuracy
|
±0.02m
|
|

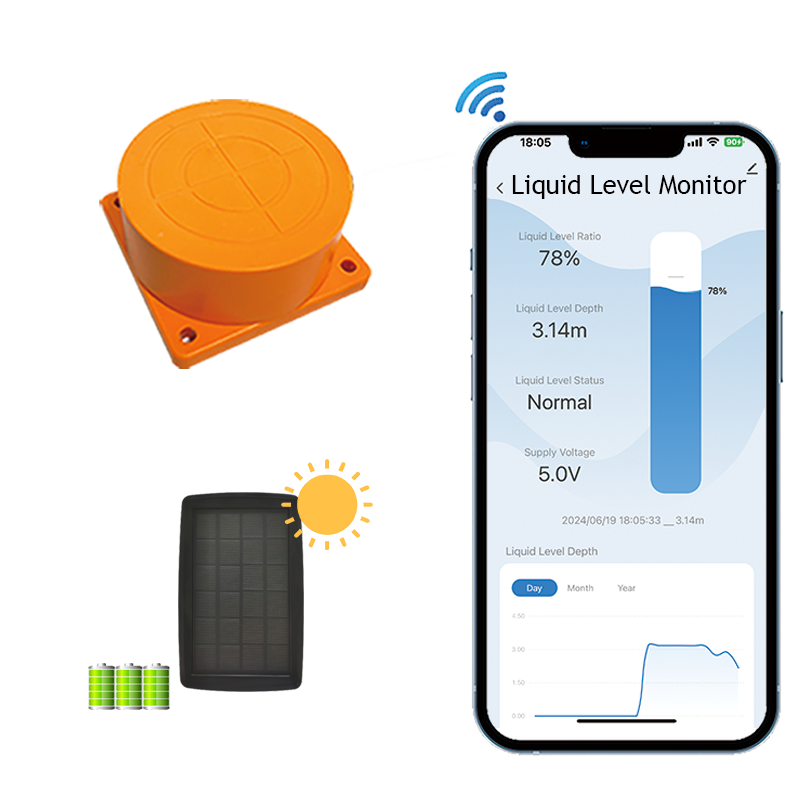

Power Supply
|
Solar Power 3.6V@3600mAh
|

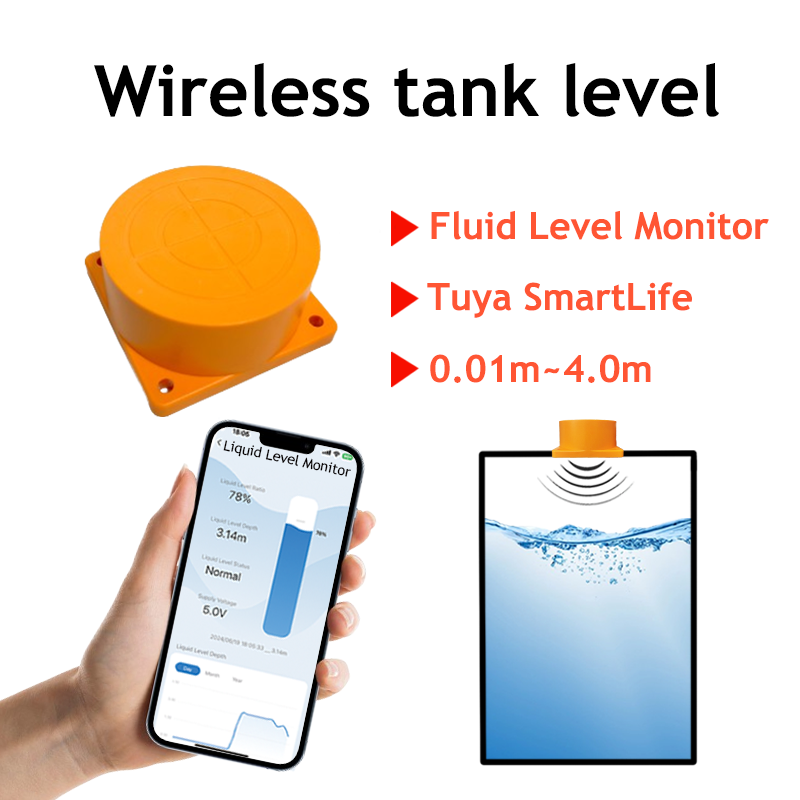

Tank Level Monitor
Any time, Any where.
Tuya Ultrasonic Sensor is an outstanding technology that boasts numerous advantages for various applications.
Its reliable distance detection capability, easy installation and use, high durability, versatility, and low maintenance costs
make it an incredible value addition to any project.
This sensor is, without a doubt, a revolutionary advantage that sets it apart from other sensors.
Product Connection

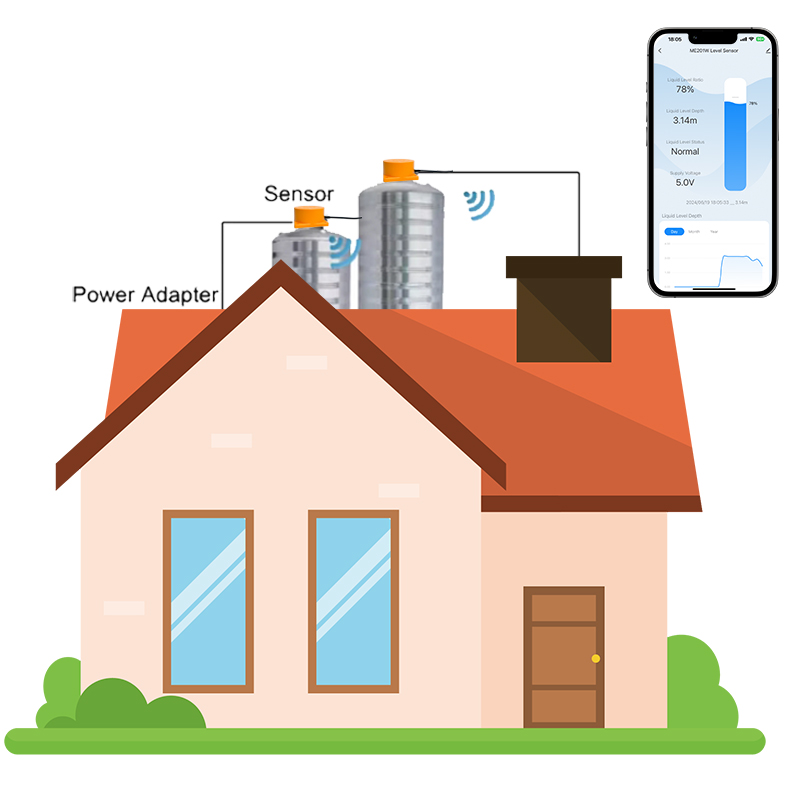

1. Power on the AC/DC ADAPTOR first, and then power on the sensor.
2. Scan code to download “TUYA Smart APP” or “Smart Life APP” on mobile device.
3.Network Reset
Press and hold the button for 5s, the led light flashes rapidly, then release the button, the network reset, the device
connect to the network automatically.
4.Connecting Sensors to APP.
Turn on the WiFi and Bluetooth of your phone,enter the app and add device.
1. Power on the AC/DC ADAPTOR first, and then power on the sensor.
2. Scan code to download “TUYA Smart APP” or “Smart Life APP” on mobile device.
3.Network Reset
Press and hold the button for 5s, the led light flashes rapidly, then release the button, the network reset, the device
connect to the network automatically.
4.Connecting Sensors to APP.
Turn on the WiFi and Bluetooth of your phone,enter the app and add device.
1. Set Installation height
lt is distance from sensor to tank bottom
2. the pump working mode is Refilling by default
3.Set Max for high level alarm
4.Set Min for low level alarm
lt is distance from sensor to tank bottom
2. the pump working mode is Refilling by default
3.Set Max for high level alarm
4.Set Min for low level alarm
1. Set Installation height
lt is distance from sensor to tank bottom
2. the pump working mode is Refilling by default
3.Set Max for high level alarm
4.Set Min for low level alarm
Control Pump(Optional)
Product Installation
1. In the center of the tank, paste 3M installation mark.
2. Drill a hole right in the middle of the label with a diameter of 55mm;
3. Place the sensor over the hole, keeping it centered and the probe unobstructed;
4. Fasten the sensor with a self-tapping screw.

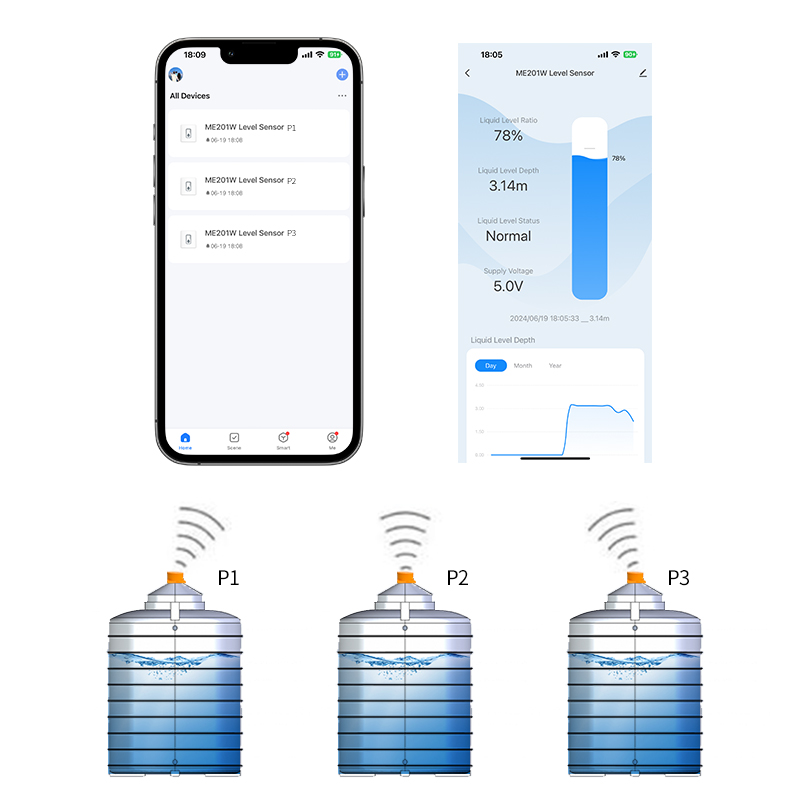

Multi-Tank Monitoring
