Q: How do I know the magnification when observing?
A: 1. Raise the holder to the top. Scroll the focus wheel till you see the most clear view on the screen. The view you see now is close to 50X magnification.
2. Lower the holder to the middle of the stand. Scroll the focus wheel till you see the most clear view on the screen. The view you see now is close to 1200X magnification.
Note:
- The actual magnification differs due to the screen size, the distance between camera and objectives.
- You can see the partial coin instead of full view as the initiate magnification is about 50X.
- The microscope monitor will be frozen, buttons and wired remote are unavailable when microscope connecting to PC. You can snap images and record videos on PC.
Featured From TOMLOV LCD Microscope
|
|
|
---|---|---|
Larger Screen Better ViewThe 7 inch rotatable screen works together with 12 megapixel ultra precise focusing camera sensor and 1080P high definition imaging, capable of creating high quality images and videos. |
1200X MagnificationAllows you to zoom in and view incredible details at magnification range from 50X to 1200X. Tips: The actual magnification responds to the focus range and objective size. |
10 LED Fill LightsApart from 8 LED fill lights surrounded by the camera, there are two extra adjustable lights attached to the base ready to create an ideal observing environment. Scroll the rotary dial at the back of the base to adjust the brightness of the two lights. |
|
|
|
---|---|---|
More Than A MicroscopeBuilt in video and photo modes allow you to snap real-time ultra clear photos and record good quality videos. You can save a large amount of photos and videos with the included 32GB sd card. Tips: Press the “menu” button for 3 seconds to switch “video”, “photo” and “replay” mode. |
Convenient Wired RemoteThe wired remote has menu, confirm, start recording and photographing. A Convenient and practical assistant. Note: Wired remote will be unavailable after connecting to PC. |
Adjustable Screen & StandThe screen angle and stand are adjustable, offering more flexibility to suit your needs. The solid metal base is tough and durable, delivering impressive performance on doing micro soldering. |
Specifications
LCD Screen Size: 7.0 Inch
Resolution: 1080P FHD
Magnification: 50X-1200X
SD Card: 32GB
Item Dimensions: 9.45 x 8.19 x 3.23 inches
Item Weight: 1.76 pounds
Support System: Windows 7/8/10 and Mac OS 10.13 and above
What’s In The Box?
- 1X TOMLOV DM9 Digital Microscope
- 1X Aluminum Base, Holder
- 1X Wired Remote
- 1X USB Cable
- 1X Light Barrier(Take off the lens protector and screw the barrier on the lens)
- 1X User Manual
- 1X 32GB SD Card

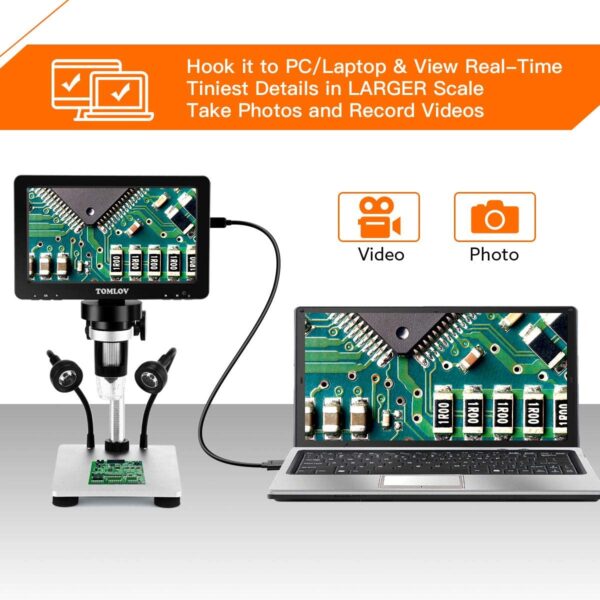

Hook Up To PC
NOTE: The microscope buttons and wired remote are unavailable under PC Camera Mode.
- Run Windows Camera on Windows or Photo Booth on iMac/MacBook.
- Connect the microscope to the PC and Choose PC Camera Mode.
- Microscope detected by webcam. Start exploring.
