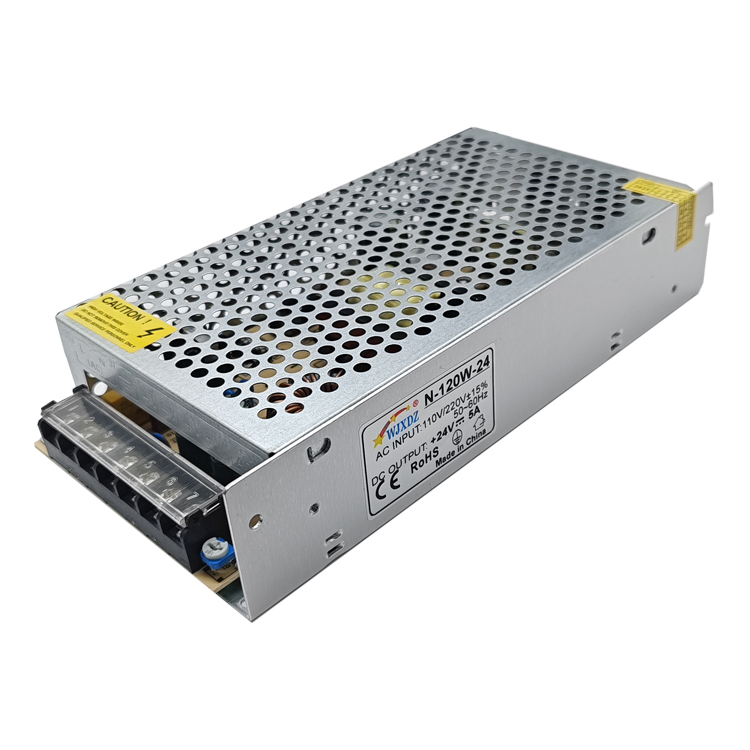

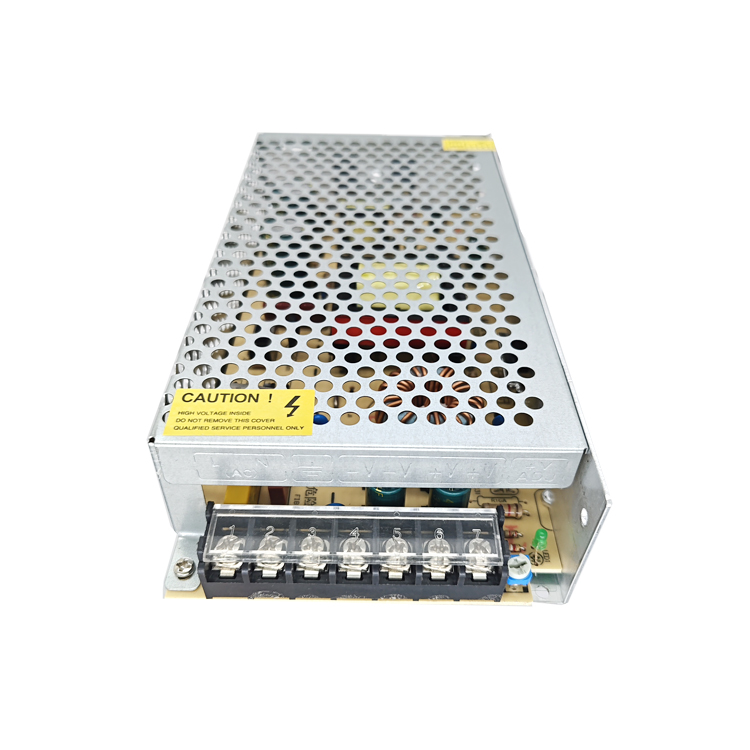

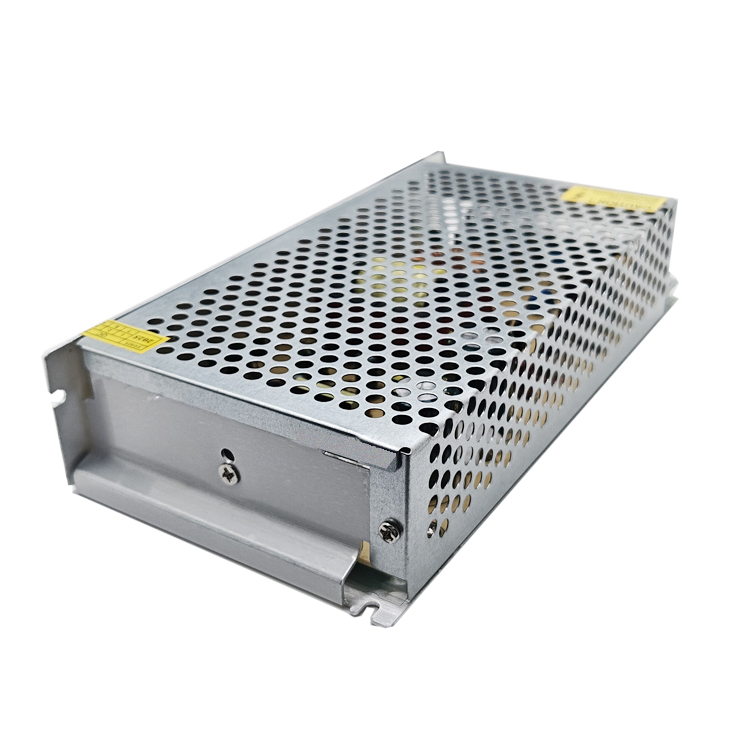

24V – 5A (120W) Switching Power Supply – AC Voltage Input: 110V ~ 220V

Power Supply 110V-220V Single Output 24V 5A 120W Overvoltage Protection Switching

Voltage: 24V

Current: 5A

Power: 120W

Model Number
N-120W-24
Input
110v-220v
Frequency Range
47~63Hz
Protection
Overload Protection/short circuit protection

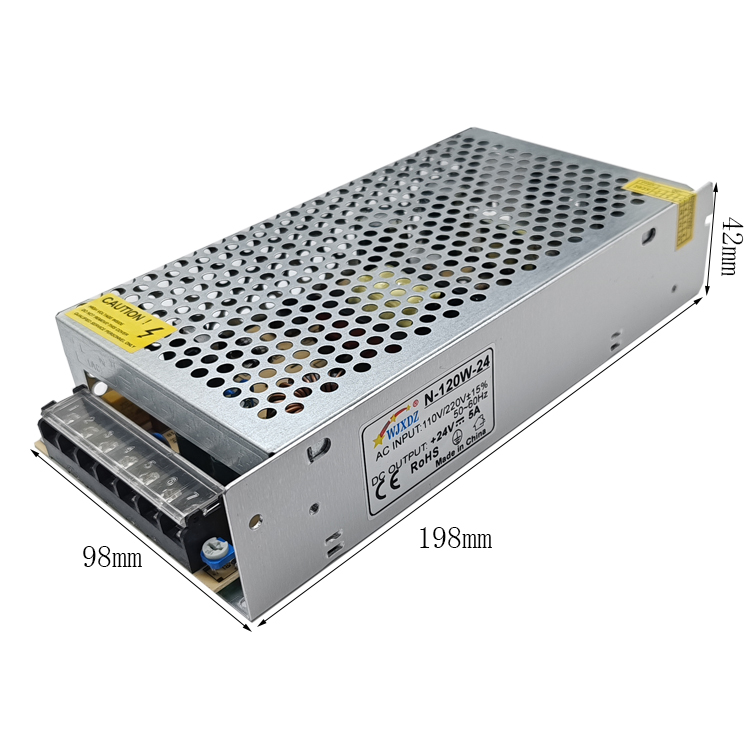

Size
198*98*42mm

Code: N-120W-24

Description

Output Voltage: 24 V
Input Voltage: 110V-220V±15%
Type: AC-DC
Output Type: Single
Application: Led Lighting
Protection: Over Power Protection, Over Temperature Protection, Overcharging Protection, Overcurrent Protection, Overloading Protection, Overvoltage Protection, Short Circuit Protection, Undervoltage Protection
Output Current: 5 A
Output Frequency: 50/60 Hz

Additional information

Series

Voltage

Current

Power

Length

Width

Height
