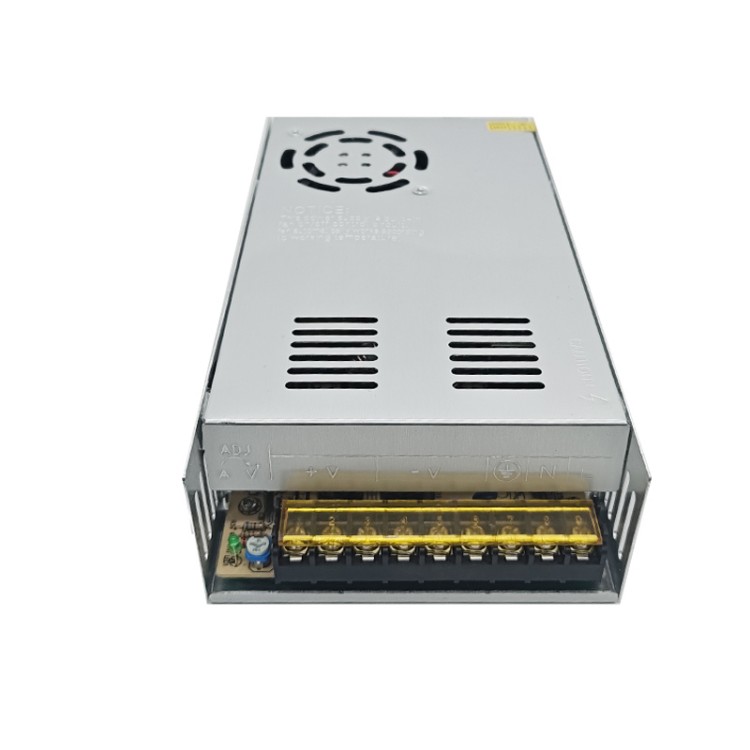

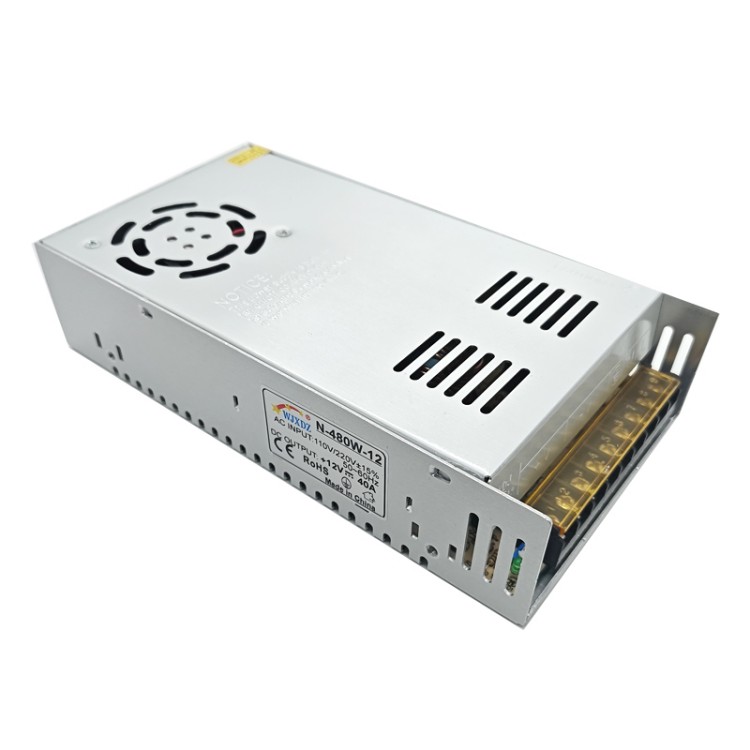

12V – 40A (480W) Switching Power Supply – AC Voltage Input: 110V ~ 220V

Power Supply 110V-220V Single Output 12V 40A 480W Overvoltage Protection Switching

Voltage: 12V

Current: 40A

Power: 480W

Model Number
N-480W-12
Input
110v-220v
Frequency Range
47~63Hz
Protection
Overload Protection/short circuit protection
Size
215*112*50mm

Code: N-480W-12

Description

Output Voltage: 12 V
Input Voltage: 110V-220V±15%
Type: AC-DC
Output Type: Single
Application: Led Lighting
Protection: Over Power Protection, Over Temperature Protection, Overcharging Protection, Overcurrent Protection, Overloading Protection, Overvoltage Protection, Short Circuit Protection, Undervoltage Protection
Output Current: 40 A
Output Frequency: 50/60 Hz

Additional information

Series

Voltage

Current

Power

Length

Width

Height
