Response frequency | 500Hz |
---|---|
Current specification | Current consumption: Max. 10mA |
Control output | NPN Normally Open |
Material | Brass(nickel plated) |
Cable Standard/material | Standard connector |
Protection structure | IP67 |
Approval | |
Body length | Standard type |
Environment_Ambient temperature | -25 to 70℃, storage: -30 to 80℃ |
Environment_Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
Hysteresis(distance) | Max. 10% of sensing distance |
Residual voltage | Max. 1.5V |
Weight | Approx. 38g(approx. 26g) |

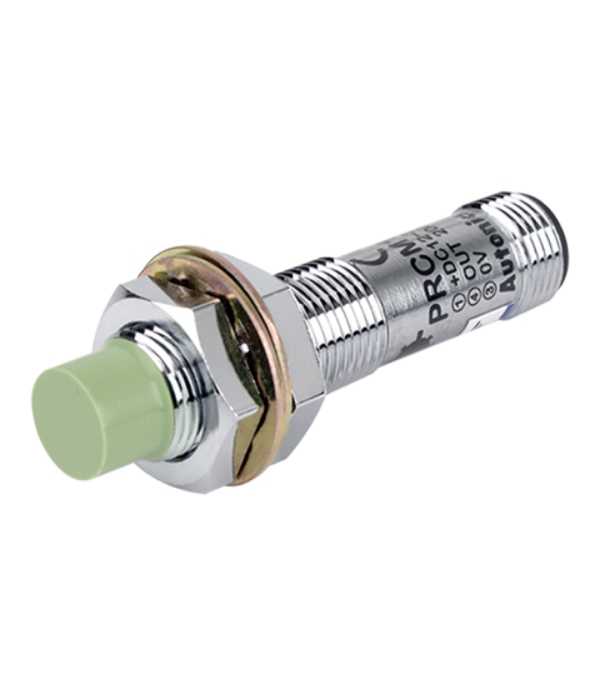

Proximity Sensor | |
Type | Cylindrical connector (PRCM Series) |
Sensing Distance | 4 mm |
Header demension / square | 12 mm |
Shield | Non Shield |
Connection Type | Connector |
Voltage | 10 – 24 VDC |
Wire Type | DC 3-wire |
Output Type | NPN |
Frequency | 500 Hz |
