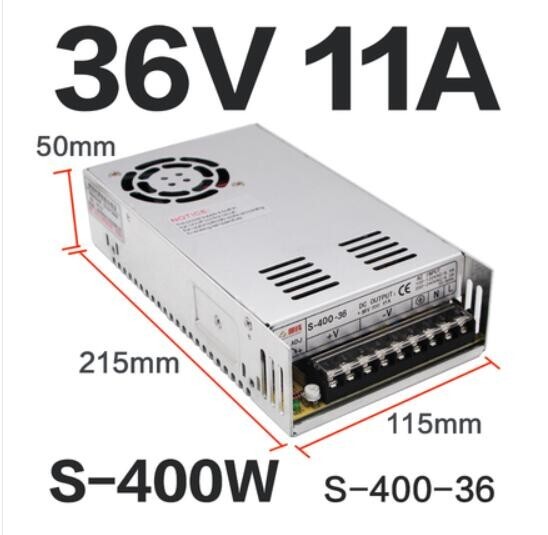

400W 36V 11A 115/230V Switching Power Supply

400W 36V 11A 115/230V Switching Power Supply

This professional 400W 36V 11A Switching CNC Power Supply can be widely used in Industrial Automation and CNC Machines.
115V and 230V can be chosen by switch. Powerful functions(eg. PWM control) and professional designs (Built-in big fan for cooling) ensure high efficiency and high reliability of the power supply. Low cost also makes it more acceptable for general usage.

Power Supply 400W 36V

Datasheet

Code: S-400-36

Categories: , Tags: , , ,

Description

  • 36V DC 11A output
  • AC input voltage range: 93~132V/176~264VAC
  • 115V/230V AC selected by switch
  • High efficiency low cost
  • Forced air cooling by built-in DC fan
  • Low output ripple and yawp
  • Over current, over voltage, short circuit and overheat protections
  • 215*115*50mm (L*W*H)
Electrical Specification
Max. Output Current(A) 11
Power Supply Specification
Output Voltage(VDC) 36
Power(W) 400
Input Voltage(VAC/VDC) 92 – 132 / 175 – 264
Physical Specification
Weight(g) 1150
Inventory Method Dedicated Inventory

Additional information

Series

Length

Width

Height

Power

Voltage

, ,

Current
