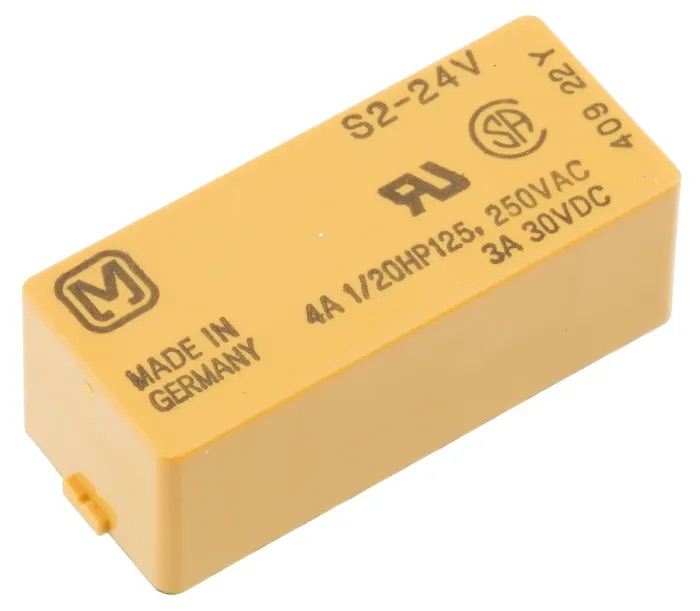

Panasonic, 24V dc Coil Non-Latching Relay DPDT, 8.4mA Switching Current PCB Mount, 2 Pole, S2-DC24V

RELAY NAIS 24V DC DPNO + DPNC

S Series Relay

These PCB mount power relays are highly reliable and efficient, have a long life and are able to provide wide ranging control. These PCB power relays also offer high sensitivity, strong resistance to vibration and shock and have a low thermal electromotive force.

Panasonic

Category: Tags: , ,

Brand: Panasonic

Coil Voltage: 24V dc

Contact Configuration: DPDT

Mounting Type: PCB Mount

Switching Current: 8.4mA

Number of Poles: 2

Terminal Type: Through Hole

Coil Resistance: 2.85 kΩ

Coil Power: 202mW

Length: 28mm

Height: 10.4mm

Series: S

Isolation Coil To Contact: 1.5kV rms

Depth: 12mm

Maximum Switching Power AC: 1 kVA

Maximum Switching Power DC: 90 W
