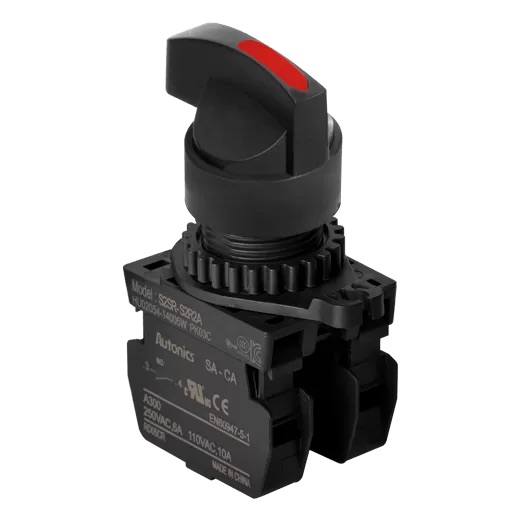

Description
| Mechanical characteristics_Operation angle | Left 90º , Right 90º |
|---|---|
| Contact block_Electrical specification_Power voltage/current | 110VAC~/10A, 250VAC~/6A |
| Protection structure | IP52 |
| Weight_Mounting hole_Ø22/25 | Approx. 19g |
| Weight_Housing | Approx. 7g |
| Weight_Contact block_Modular type A/B contact | Approx. 10g |
| Operation type | Long lever 3-position, maintained |
| Color | White |
| Contact block | A contact: 2 |
| Contact block type | Modular type |
| Environment_Ambient temperature | -15 to 55℃, storage: -25 to 65℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
※Environment resistance is rated no freezing or condensation.
※The control unit, contact blocks, LED blocks are sold separately.
※Connect up to 2 contact blocks. Connect the contact blocks only on the right and left side slots. It will not operate if connected to the center slot.
