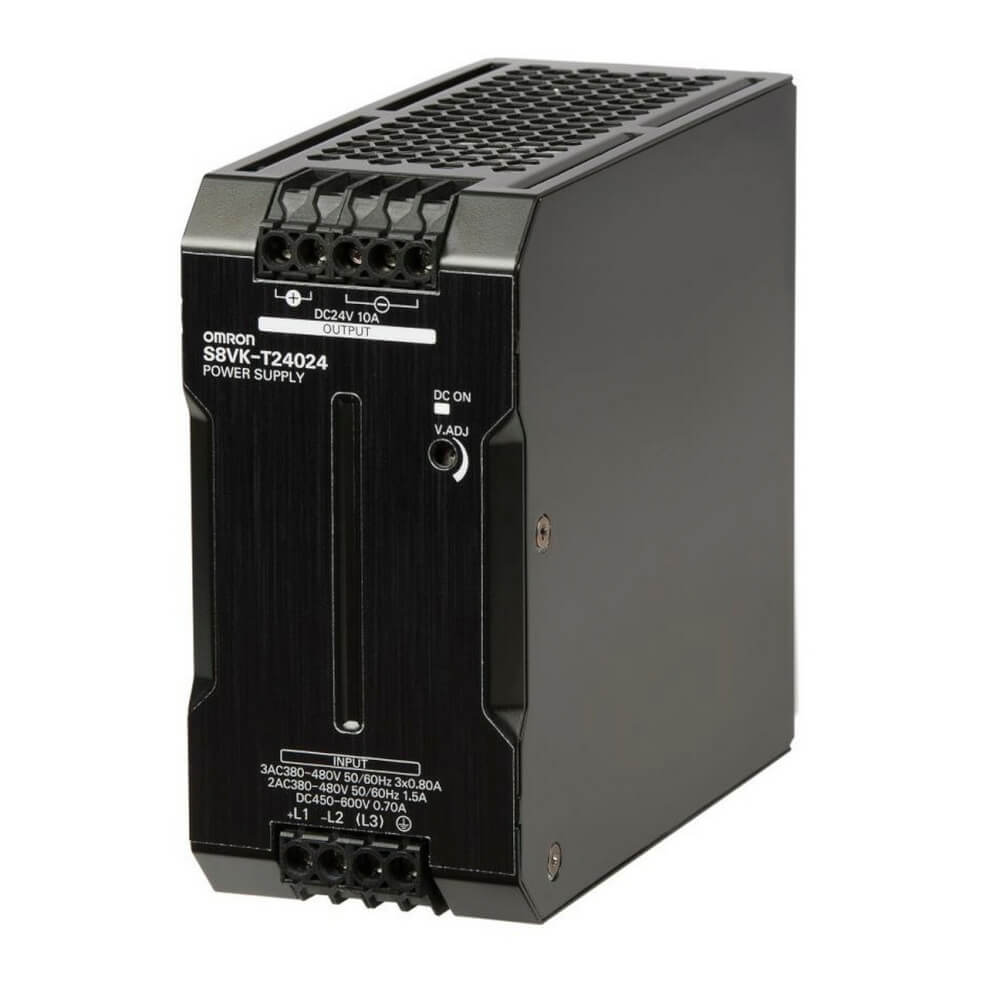

Description
| Type | Book type |
| Mounting method | DIN rail |
| Phase | Three |
| Power output | 240 W |
| Efficiency | 89 % |
| Output voltage | 24 V |
| Rated output current | 10 A |
| Power boost ratio | 120 % |
| Temperature range | -40-70 °C |
| Terminal | Screw |
| Rated supply voltage at AC 50 Hz | 380-480 V |
| Allowable supply voltage AC | 320-576 V |
| Allowable supply voltage DC | 450-810 V |
| Product Width (unpacked) | 60 mm |
| Product Height (unpacked) | 125 mm |
| Product Depth (unpacked) | 140 mm |
