Description

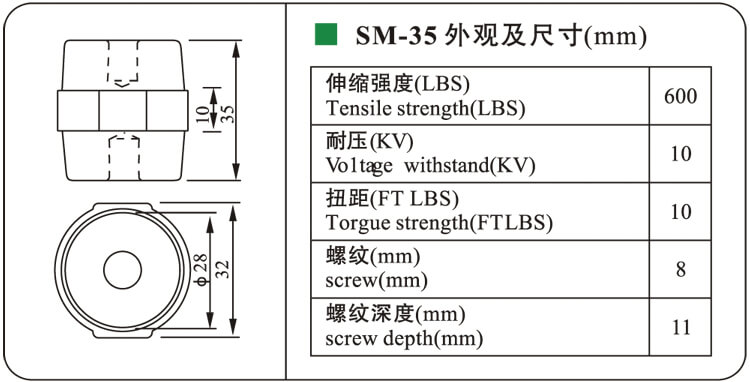

- Model: SM35
- Tension: 660V-4500V
- Height: 35mm
- Diameter: 32mm
- Screw: 8MM
- Material: BMC/DMC
- Torque force: 20N
- Centil strength: 5000N
- Certificate: CE, REACH, ELV, SGS
SM Busbar Insulator
SM busbar insulator is a drum, made of DMC, used for low voltage applications (660V-4500V), such as distribution box, switchgear, inverter and green power supply, etc.
CE, SGS, ROHS certificate for drum insulator.
Materials:
-Thread insert / Threaded insert:
Steel with Zn coating
Brass Steel coating
Brass
-DMC (Doug Molding Compound)
-SMC (Sheet Molding Compound)
Color / Colore : Red
Operating temperature / Temperature of use : 40℃～140℃
Flammability / Self-extinguishing : V0
All dimensions are in mm / All quotes are in mm
Please confirm the screw when ordering bus bar insulator. Accept OEM.
Application:
Low-voltage busbar insulators are mainly used in low-voltage power distribution cabinets, frequency converters, switchgears, and other products.
By connecting the copper busbar support, it plays a fixing, supporting, and insulating role.
The busbar support insulator has excellent insulation performance, high strength, high temperature resistance, reliable safety performance, and is a good choice for fixed busbars in low-voltage power distribution cabinets.
