TOUCH LCD 2.8

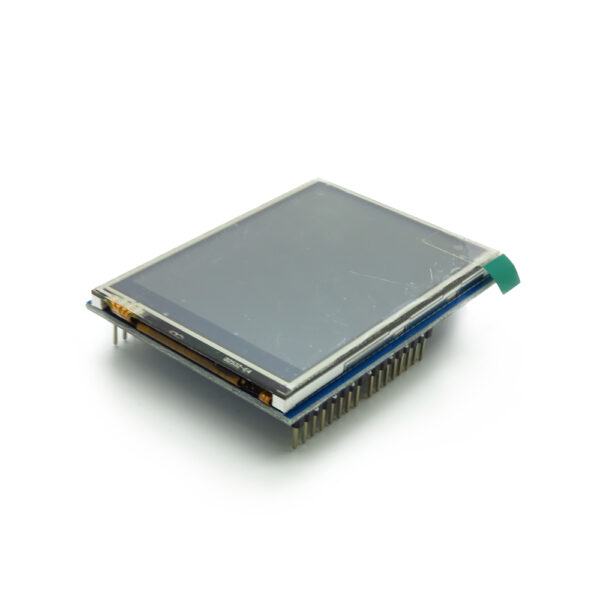

ARDUINO 2.8 INCH TFT TOUCH LCD MODULE ILI9341 3V

Spice up your Arduino project with a beautiful large touchscreen display shield with built in microSD card connection. This TFT display is big (2.8″ diagonal) bright (4 white-LED backlight) and colorful (18-bit 262,000 different shades)! 240×320 pixels with individual pixel control. As a bonus, this display has a optional resistive touch panel with controller XPT2046 attached by default and a optional capacitive touch panel with controller FT6206 attached by default, so you can detect finger presses anywhere on the screen and doesn’t require pressing down on the screen with a stylus and has nice glossy glass cover.

No wiring, no soldering! Simply plug it in and load up the library (at the bottom of this page) – you’ll have it running in under 10 minutes! Works best with any classic Arduino (UNO/Due/Mega 2560).
This display shield has a controller built into it with RAM buffering, so that almost no work is done by the microcontroller. You can connect more sensors, buttons and LEDs.

Of course, we wouldn’t just leave you with a datasheet and a “good luck!” – we posted a full open source graphics library at the bottom of this page that can draw pixels, lines, rectangles, circles and text. We also posted a touch screen library that detects x,y and z (pressure) and example code to demonstrate all of it. The code is written for Arduino but can be easily ported to your favorite microcontroller!

Specification

Gross Weight (kg)0.1
Display Format240x320 Dots
Interface8080 8-bit Parallel , 8080 9-bit Parallel , 8080 16-bit Parallel , 3-Wire Serial SPI, 4-Wire Serial SPI
IC or EquivalentILI9341
AppearanceRGB
Diagonal Size2.8“
ConnectionPin Header, FFC-Connector
Outline Dimension60.0W)x81.0(H)mm
Visual Area44.80x59.20mm
Active Area43.20(W)x57.60(H)mm
Character SizeNo
Dot (Pixel) SizeNo
Dot (Pixel) Pitch0.18x0.18mm
IC PackageSMT
Display TypeTFT-LCD Color
Touch Panel OptionalYes
Sunlight ReadableNo
Response Time(Typ)25ms
Contrast Ratio(Typ)January 19, 1900
Colors65K/262K
Viewing DirectionJanuary 1, 1970
Viewing Angle RangeLeft:70.0 , Right:70.0 , Up:70.0 , Down:60.0 degree
Brightness(Typ)350cd/m2
Backlight ColorWhite Color
Backlight Current (Typ)75mA
Power Supply(Typ)5V
Supply Current for LCM(Max)85mA (Vdd=3.3V) 85mA (Vdd=5V)
Operating Temperature-20℃~70℃
Storage Temperature-30℃~80℃
Series NumberER-TFT028-4

Compatible with Following Arduino Boards

Board Name
MCU
I/O
Arduino MEGA2560
ATMEGA2560
54
Arduino MEGA1280
ATMEGA1280
54
Arduino Due
AT91SAM3X8EA
54
Arduino Uno
ATMEGA328
14

Datasheets, Documents & Libraries

Touch LCD 2.8 Datasheet

XPT2046

ER-TCP028-4.1_Drawing

ER-AS-ILI9341_Datasheet

FT6206

ER-AS-ILI9341 Arduino Schematic Diagram

Libraries+Examples for 4-wire SPI 2.8 inch Resistive Touch Shield

Libraries+Examples for 4-wire SPI 2.8 inch Capacitive Touch Sh
