Description
UT116C Digital Smart SMD Tester, Electronic Component Tester Tweezers, Diode Continuity Resistor Capacitor Battery LED Tester, Resistance Capacitance Multi Meter, 6000 Counts, Auto Ranging

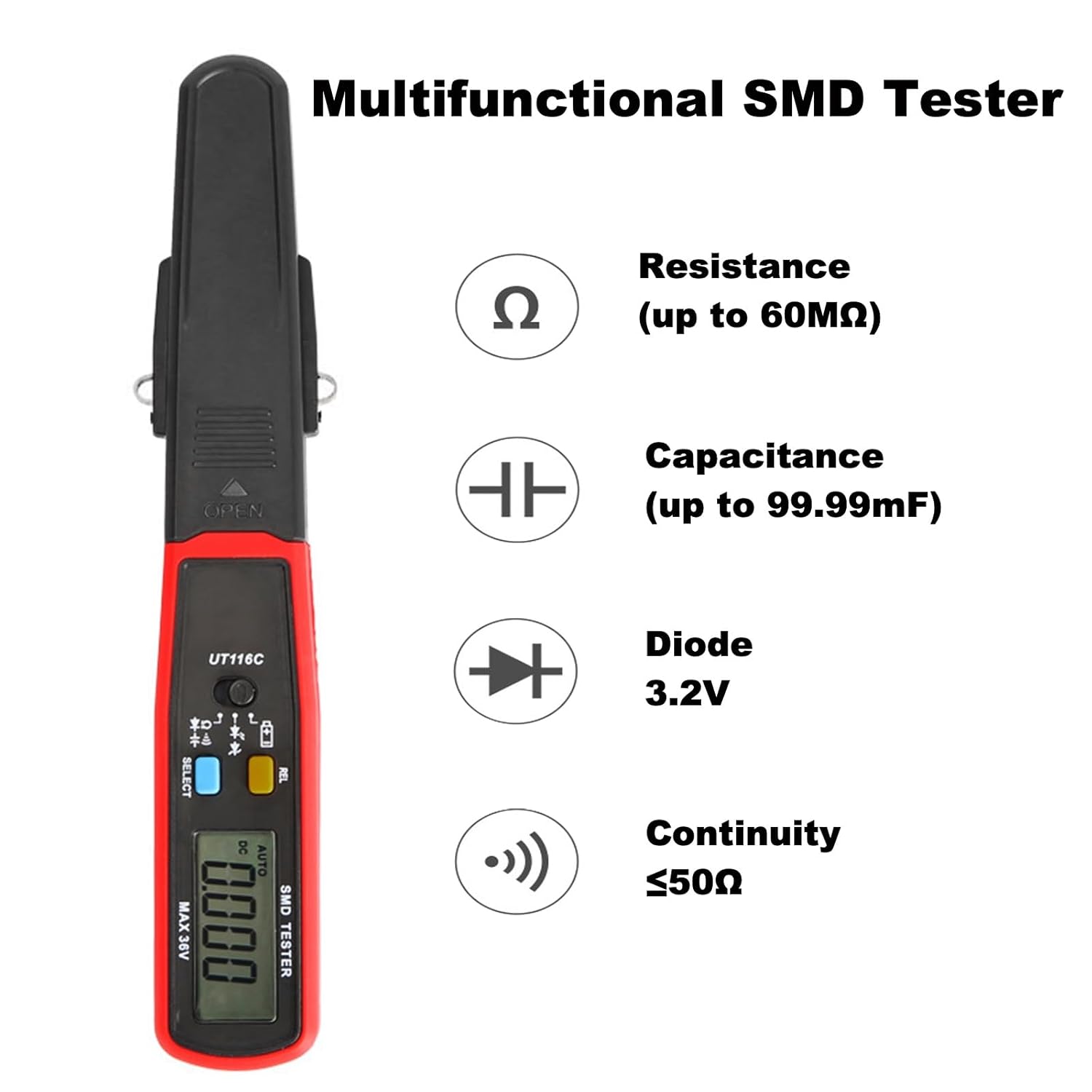

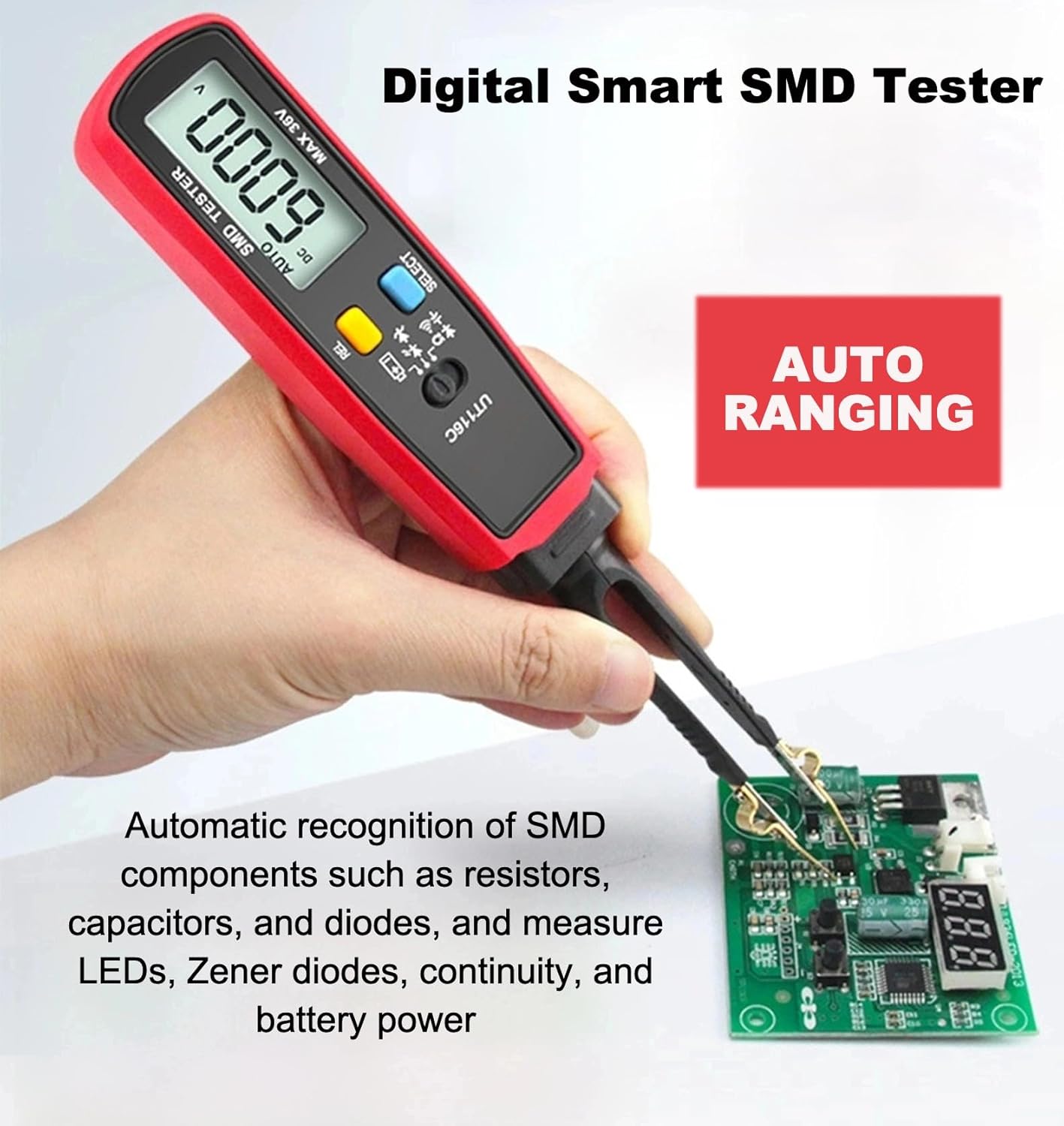

Smart SMD tester can automatically identify SMD components such as resistors, capacitors, and diodes, and measure LEDs, Zener diodes, continuity, and battery power
Surface mount component tester tweezers can measure resistance, capacitance, continuity, and battery (>10mA), display of 6000 counts
Resistor capacitor battery LED tester engineered with gold-plated test tips (+ extra pair of tips), plus its appropriate size and lightweight, making it flexible and easy to control with fingers

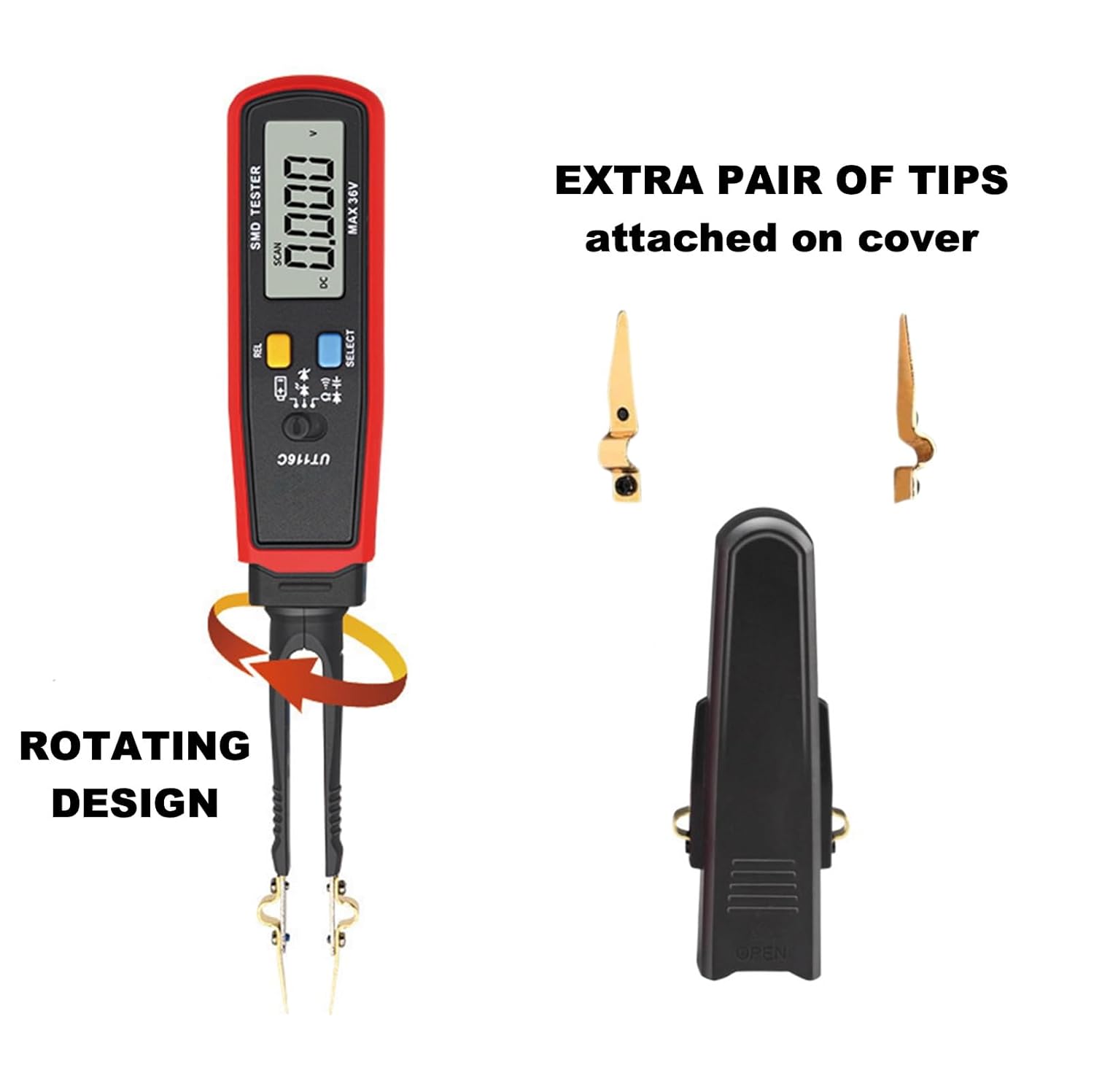

Digital smart SMD tester features a rotating body, convenient to view the data from different angles
Resistor capacitor LED tester widely used for testing surface mount components, repairing laptops, smartphones, and other motherboards with SMD components, essential for professionals in electronics manufacturing, service, and repair
SPECIFICATION
Model: UT116C
Display: 6000 counts
Resistance:600Ω – 60MΩ
Resistance resolution: 0.1Ω – 10kΩ
Capacitance: 9.999nF-99.99mF
Capacitance resolution: 0.001nF – 10μF

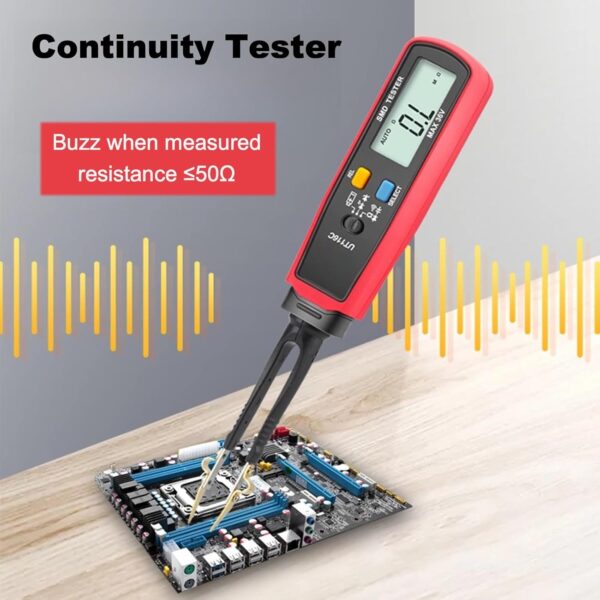

Continuity test: ≤50Ω
Diode test: 3.2V
Battery test: load current >10mA
LED: about 21V/5mA
Auto range: yes
Auto power off: yes
Power supply: 2x 1.5V AAA battery
Size: 8.0×1.3×1.0 in
Net weight: 0.18 lb.

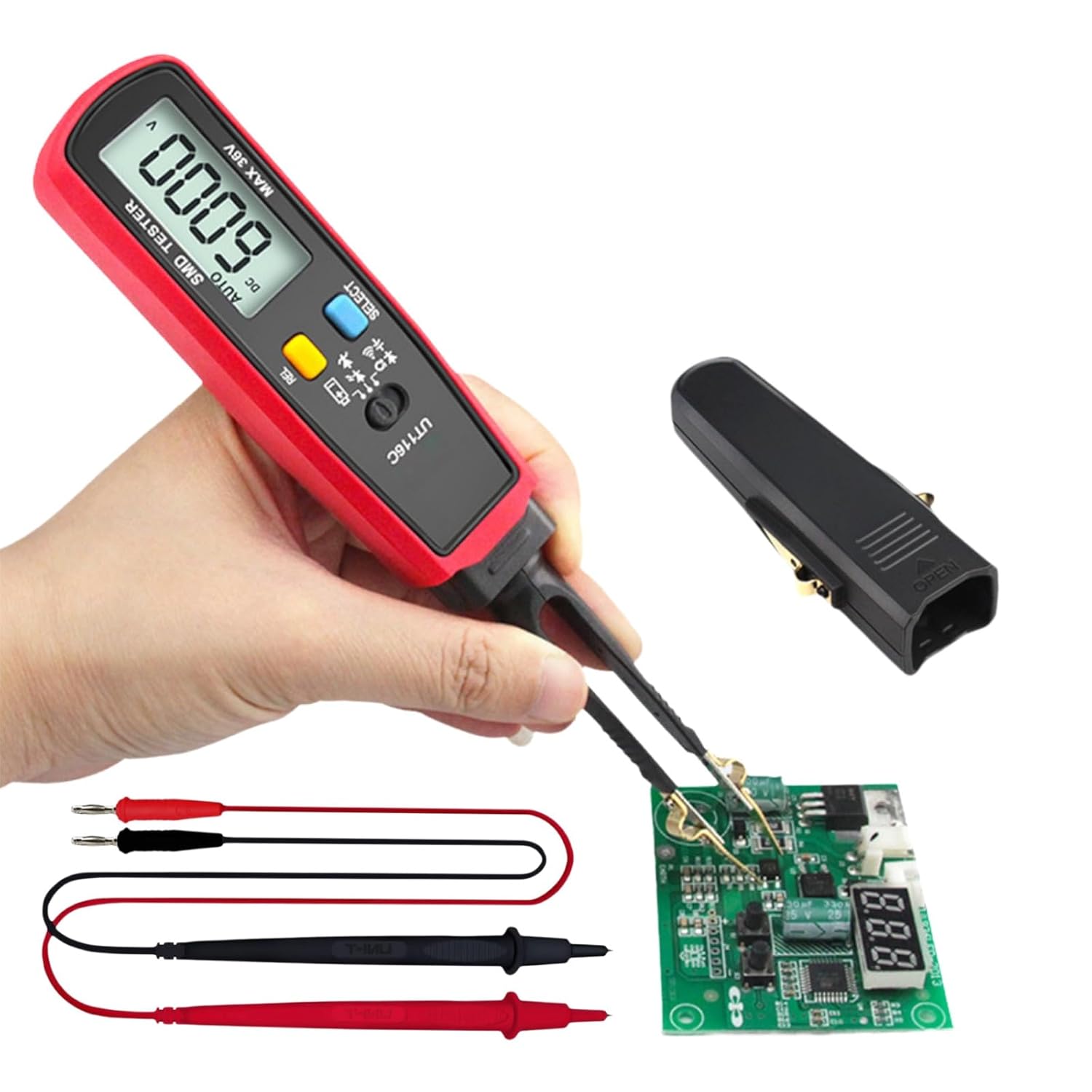

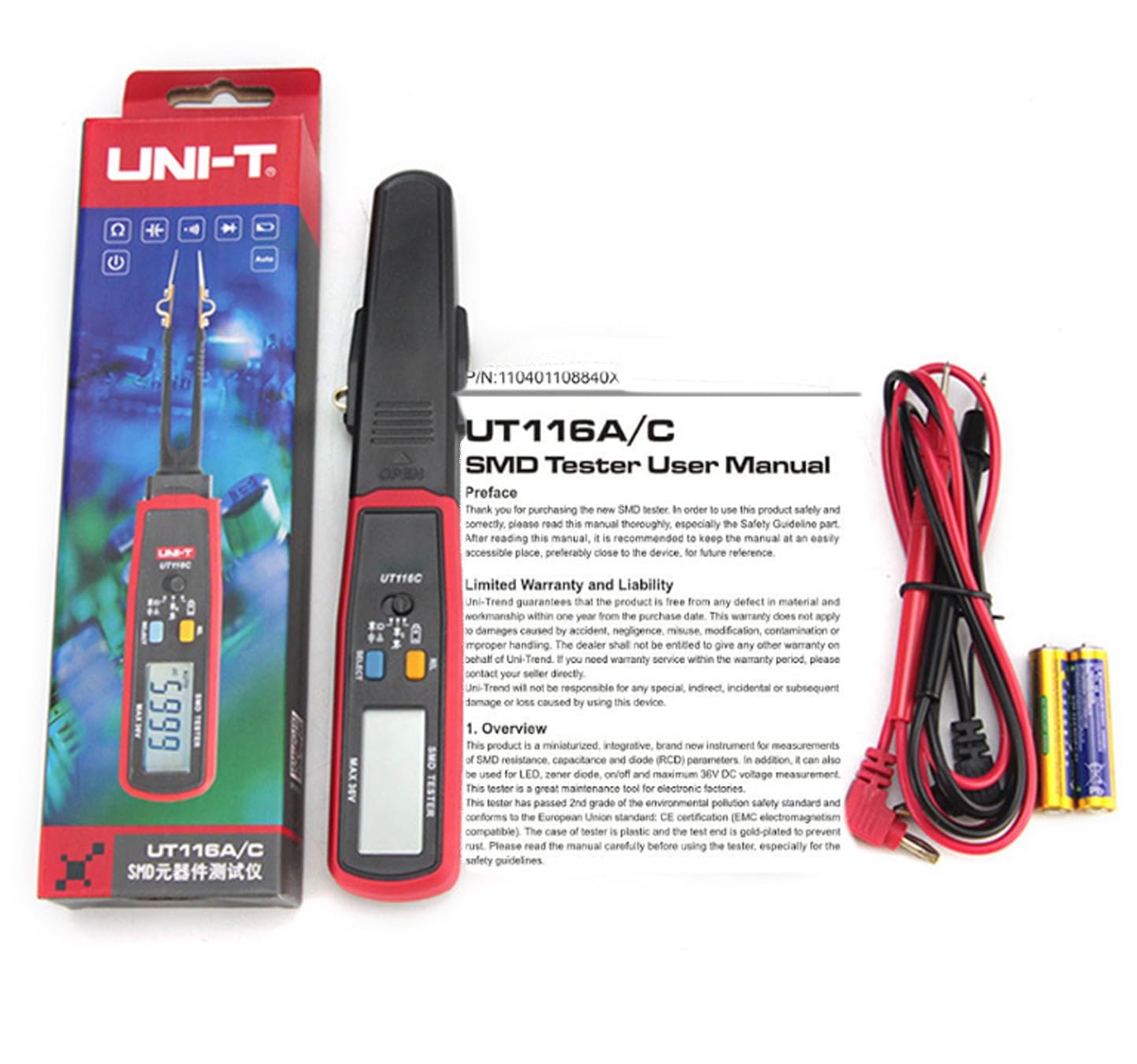

PACKAGE
1 x UT116C Smart SMD Tester with Cover
1 x Extra Pair of Tips attached on cover
1 x Pair of Test Leads
1 x Manual
