Description
UNI-T is your testing specialist.
Since 1988, Uni-Trend Technology (China) Co., Ltd has been the developer, manufacturer and marketer of reliable testing, measuring and inspecting products to over 100 countries and regions globally.

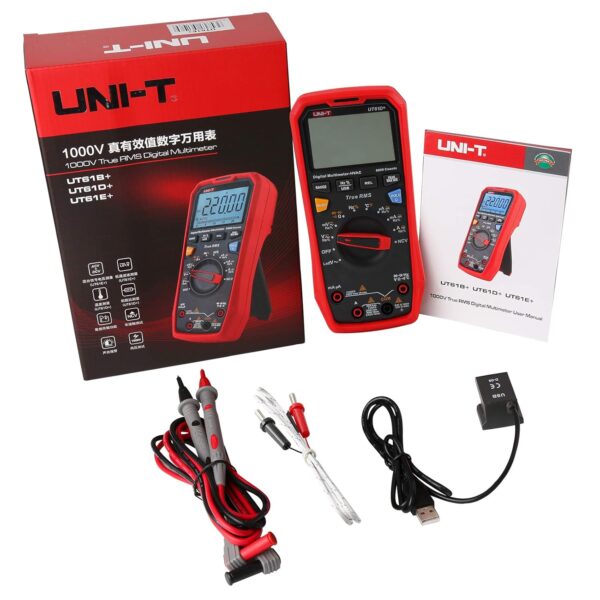

What You Get
1 x UT61B+ multimeter
1 pair x test leads
1 x USB cable
1 x paper manual (En)
1 x eManual
(*Please download user manual)
1 x software
(*Please refer to Installation manual)
1 x gift box
Specifications
AC voltage (V). 1000V. ±(1%＋3)
DC voltage (V). 1000V. ±(0.5%＋3)
AC current (A). 20A. ±(1.2%＋5)
DC current (A). 20A. ±(1%＋2)
Resistance (Ω). 60MΩ. ±(1%＋2)
Capacitance (F). 60mF. ±(3%＋5)
Frequency (Hz). 10MHz. ±(0.1%＋4)
Duty cycle (%). 0.1%~99.9%. ±(2%＋5)
Temperature (℃/℉). -40℃~1000℃. ±(1%＋3) / -40℉~1832℉. ±(1%＋6)
Display count. 6000
Bandwidth (Hz). 40Hz~1kHz
LoZ ACV. √
Peak Hold. √
Analog bar. 31
Power. 1.5V battery x 4
