Description

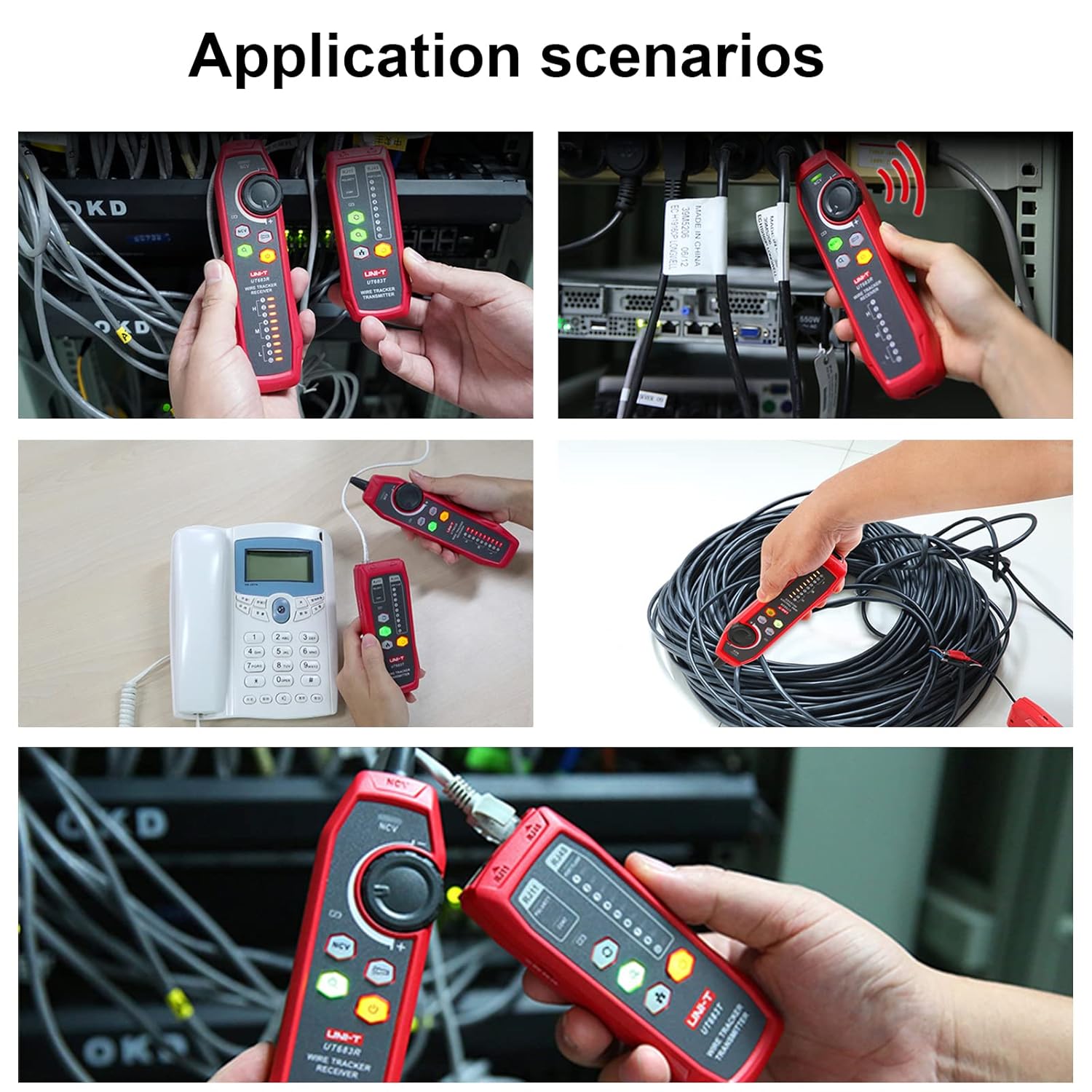

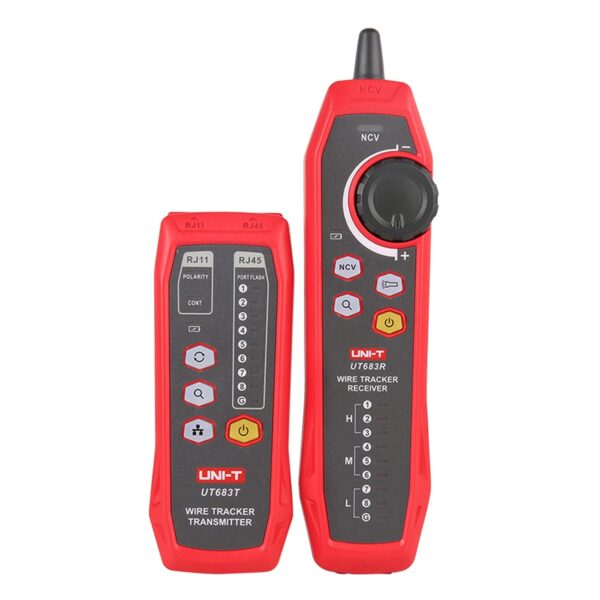

The UT683KIT is an intelligent wire tracker which consists of the transmitter and receiver, this kit is designed with strong anti-interference ability. The receiver can quickly and accurately locate the target cable. This kit can automatically identify open, short, polarity, and quickly distinguish cable failure.

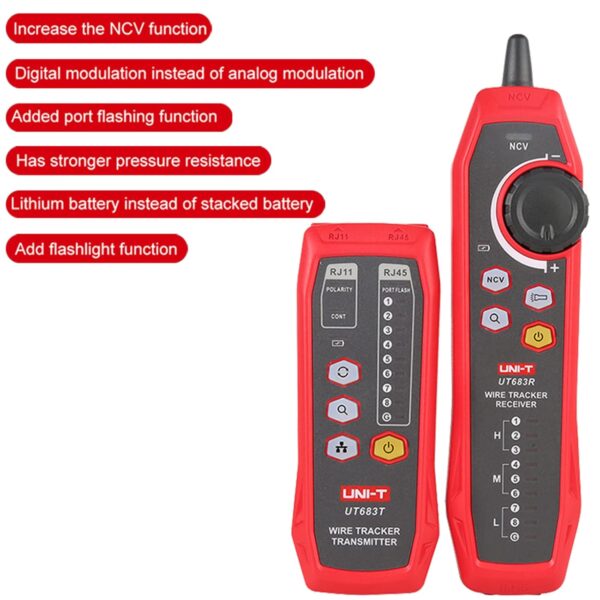

Features of UT683KIT Wire Tracker
Certifications: CE, UKCA
- Line function
- NCV function
- Withstand voltage DC 60V
- Port flashes
Specifications of UT683KIT Wire Tracker
| Specifications | Description |
| Certificates | CE, RoHS |
| Transmitter | |
| Port flashing | √ |
| Wire tracking | √ |
| Line alignment | √ |
| Open-short test | 10kΩ |
| Polarity test | √ |
| Operating time | ＞8 hours |
| Receiver | |

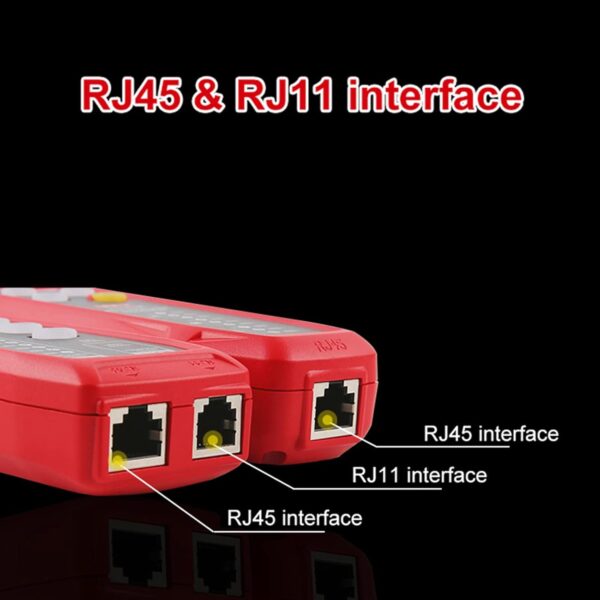

| Wire tracking | RJ11＞3000m; RJ45＞100m |
| NCV function | √ |
| Headset jack | 3.5mm |
| Low battery indication | √ |
| Operating time | ＞5 hours |
| General Characteristics | |
| Power | 1050mAh rechargeable lithium battery |
| Product net weight | Transmitter: around 95g; Receiver: around 127g |

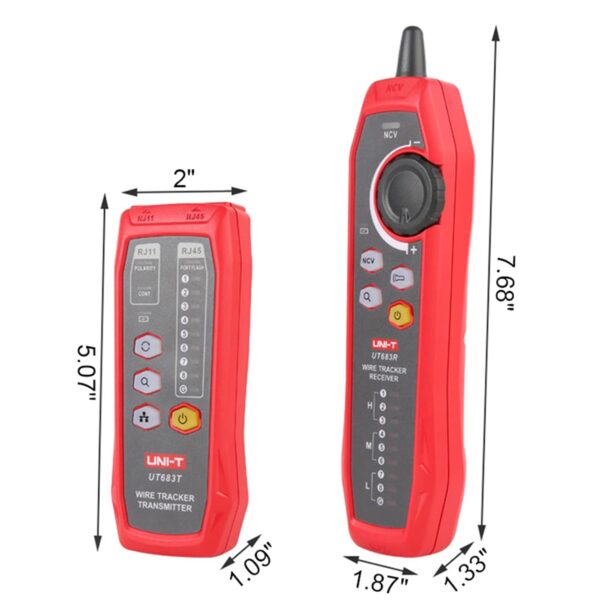

| Product size | Transmitter-130mm x 51mm x 28mm;
Receiver-197mm x 48mm x 34mm |
