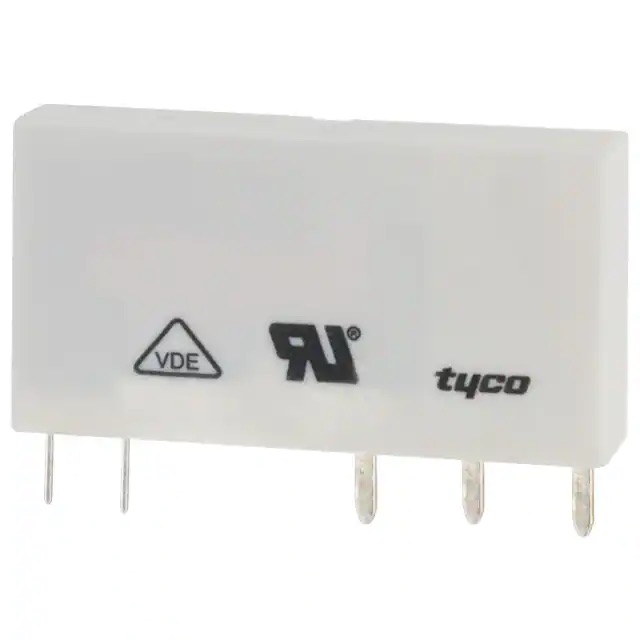

SCHRACK SLIM PCB RELAY 12V-6A 250V AC
Mounting Type |
Through Hole |
Coil Voltage |
12VDC |
Contact Form |
SPDT (1 Form C) |
Contact Rating (Current) |
6 A |
Switching Voltage |
400VAC – Max |
Coil Current |
14.2 mA |
Coil Type |
Non Latching |
Features |
– |
Termination Style |
PC Pin |
Seal Rating |
Sealed – Fully |
Coil Insulation |
– |
Must Operate Voltage |
8.4 VDC |
Must Release Voltage |
0.6 VDC |
Operate Time |
12 ms |
Release Time |
5 ms |
Operating Temperature |
-40°C ~ 85°C |
Contact Material |
Silver Tin Oxide (AgSnO) |
Code: V23092-A1012-A301
