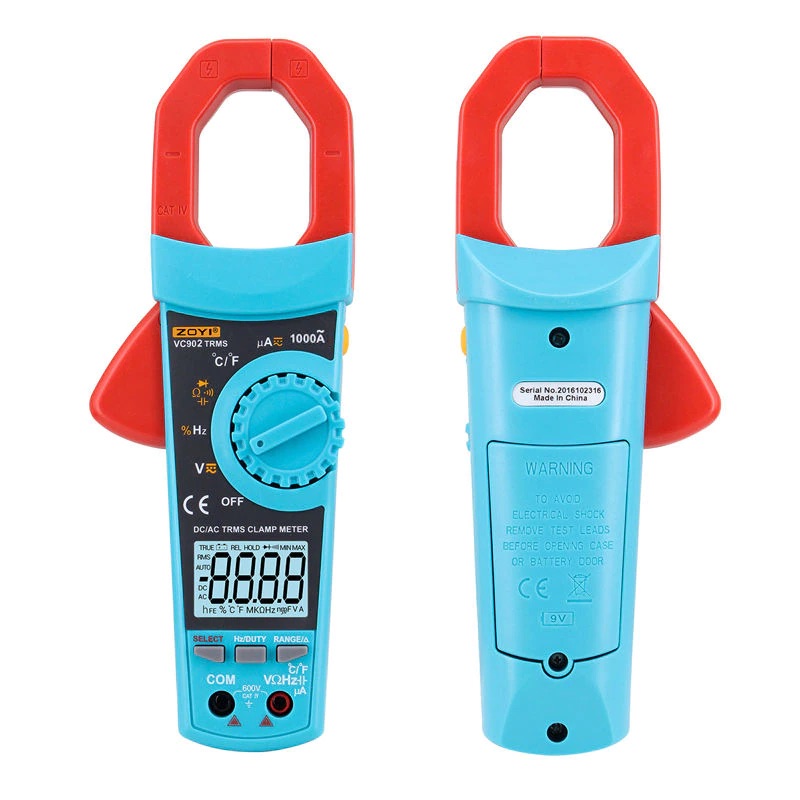

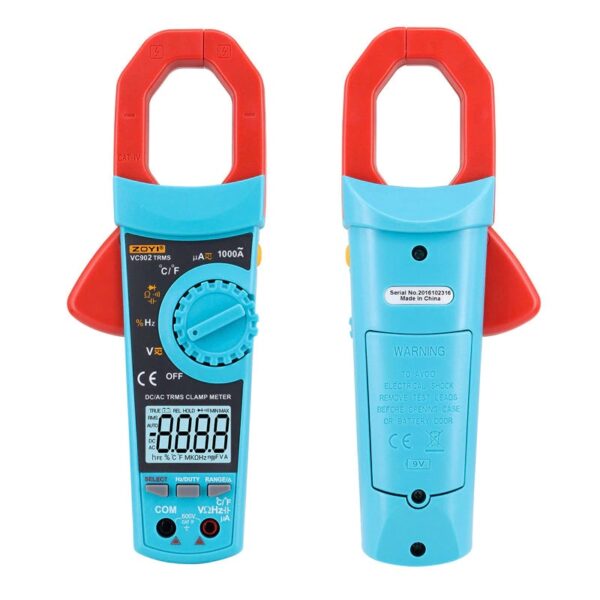

VC902 True RMS Digital Clamp Meter Ac/Dc Current Voltage Automatic Range Capacitance Resistance High Precision Multimeter

CLAMP METER TRUE RMS AC

Auto/manual range
550V protection in resistance and capacitance ranges
Large LCD display，MAX display 6000 counts
Sample rate: 3 times per second
backlight
Data hold
Polarity identification
Low voltage indication
1200A AC/DC high current measurement, low AC/DC current measurement
Auto power off
Main measurements: AC/DC Voltage, AC/DC Current, Resistance，Capacitance

Code: VC902

Categories: , Tags: , , , ,

1.Frequency：99.99Hz/999.9Hz/9.999KHz/99.99KHz/999.9KHz/9.999MHz
2.Temperature：-20~1000℃/ -4~1832℉
3.capacitance：9.999nF/99.99nF/999.9nF/9.999uF/99.99uF/999.9uF/9.999mF
4.DC voltage:600mV/6V/60V/600V/1000V
5.AC voltage: 600mV/6V/60V/600V/750V
6.DC Ammeter:600uA/6000uA/60A/600A/1200A
7.AC Ammeter:600uA/6000uA/60A/600A/1200A
8.Resistance：600Ω/6K/60K/600K/6M/ 60MΩ
9.Duty cycle:1% to 99%,±(0.1%+2);
10.Measurement mode: Double-integral style A/D transform
11.Over range indication: OL
12.Working environment: 0~40℃, relative humidity < 80%
13.Supply power: 9V (6F22*1 Piece)
14.Dimension: 240*90*45mm
15.Weight: 325g;
