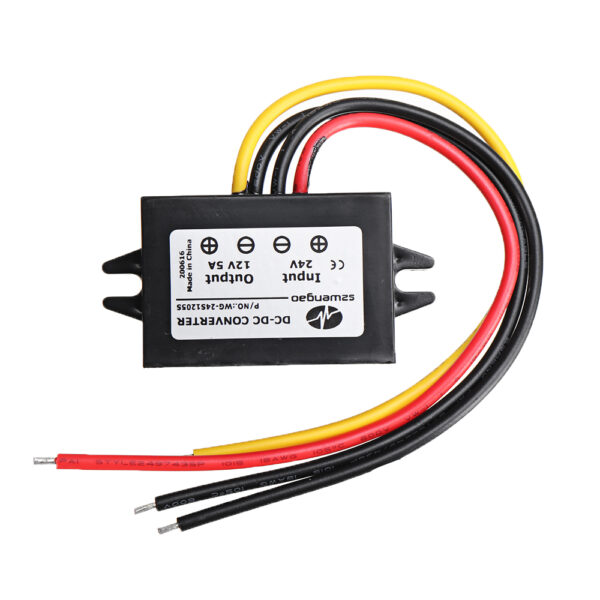

WG-24S1205S – 24V TO 12V 5A CAR POWER CONVERTER 60W CAR STEP DOWN POWER SUPPLY MODULE

Non-isolated DC power supply module

Designed according to CE/RoHS

100% full power, high stability output

Die-cast aluminum alloy shell, small size, simple installation

Internal protection functions such as over current, low voltage, over temperature, short circuit, reverse connection, etc.

Wide voltage input, high conversion efficiency of 92-96%

Long service life of more than 100,000 hours.

Brand: SZWENGAO

Model: WG-24S1205

Output current: 5A

Input voltage: 24V DC

Input voltage range: 18V~40V DC

Output voltage: 12V DC

Output power: 60W

Peak output power: 130%

Voltage adjustment rate: <1%

Load regulation rate: <2%

No-load current: <20mA

Ripple: <40mV

Working temperature: -34°C ~+80°C

Size: 46*32*18mm

Packing size: 55*25*22mm

Efficiency: 96%

Waterproof rating: IP68

Net weight: 65g

Gross weight: 75g

Input wiring: red ‘+’ black ‘-‘

Output wiring: white/yellow ‘+’ black ‘-‘
