YIHUA 3010D VI Variable 30V 10A Single Output Digital Adjustable Switching DC Power Supply

COMMUNICATION MAINTENANCE POWER SUPPLY 0-30V 10A

1. Small size and light weight, easy to transport and carry.
2. High efficiency, strong load capacity and low noise.
3. High voltage stability, small ripple coefficient, and perfect short-circuit protection and over-current protection design.

Code: YIHUA 3010D-VI

Categories: , , Tags: , , ,

Description

Data:

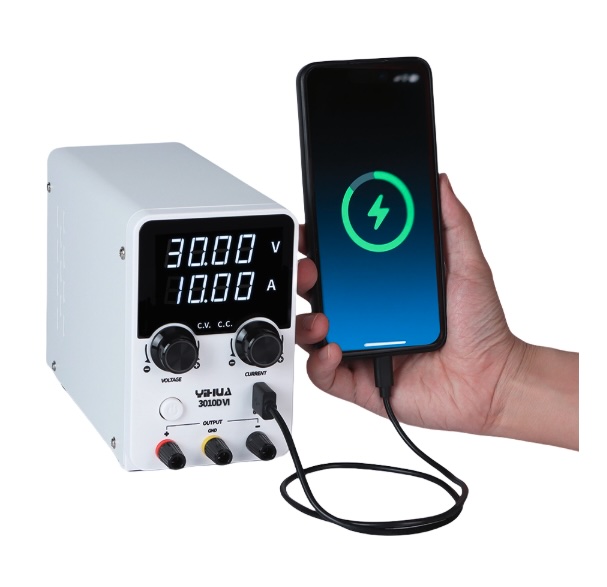

have 20W Fast USB charger
Input voltage: 110~127V/AC, 60Hz or 220~240V/AC, 50Hz
Rate power: 180W
Display: LCD
Output voltage: DC 0~30V (Accuracy <0.1%+0.03V)
Output power: 300W
Load regulation <1%+10mV
Ripple & noise(10Hz~1MHz) <0.5%Vrms
Output current: DC 0~5A (Accuracy <0.6%+20mA)

Applicable range:
This digital adjustable regulated DC power supply is specially designed for scientificc research,product development,laboratories testing, higher education proctical applications,assembly line and elextrinic repair.

Feature highlights:Compact and lightweight 30V 10A digital switching DC power supply with high efficiency, strong load capacity, and low noise. Features high voltage stability, minimal ripple, and reliable short-circuit and over-current protection. Suitable for scientific research, laboratories, education, and electronic repair.
Supplier highlights:This supplier is both a manufacturer and trader, exporting mainly to the United States, Germany, and the United Kingdom. They offer quality control and customization based on design and samples, with a positive review rate of 94.6%.

Applicable range:
This digital adjustable regulated DC power supply is specially designed for scientificc research,product development,laboratories testing, higher education proctical applications,assembly line and elextrinic repair.

YIHUA 3010D-VI Variable 30V 10A Single Output Digital Switching DC Power Supply

Data:
input voltage :220V-240V/AC,50Hz
Rated power :180W
Main unit dimensions:L195*W70*H157MM±5mm
Operating ambient temperature:-10~40℃/14℉~104℉
Relative humidity :<90%
Output voltage :Adjustable continuously within DC 0~30V
Output current :Adjustable continuously within 0~10A
Output power :150W
Voltage Precision:<0.1%+0.03V
Current Precision:<0.6%+20mA
Load regulation:<1%+10mA
Ripple noise:Vrms<0.5%(10Hz ~ 1MHz)
