This HX710B air pressure sensor module uses a high-precision AD sampling chip, adopts a 0-40KPa air pressure sensor, can connect a 2.5mm hose, can detect water level, and other air pressure. Featured by Sharvi Electronics This air pressure module uses a high-precision AD sampling chip, adopts a 0-40KPa air pressure sensor, can connect 2.5mm hose, can detect water level and other air pressure, voltage 3.3V-5V, compact size, using 5k resistance bridge above The sensor, the specific pressure value needs to be calculated by ourselves.

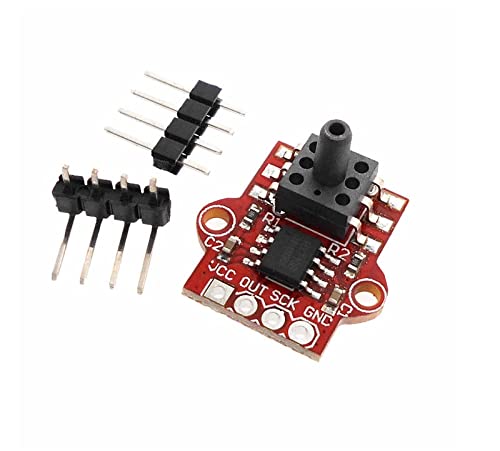

HX710B Air Pressure (0-40KPA) Sensor Module
ARDUINO PRESSURE SENSOR MODULE
- Model: HX710B; Interface Type: Serial; Data Output Rate: 10 SPS/80SPS; Operating Current:1.5mA
- Operating Temperature Range: -40 to 85°C; Gain: 32/64/128; Two Selectable Differential Input Channels.; On-Chip Active Low Noise PGA.
- Selectable Gain of 32,64 and 128.; On-Chip Power Supply Regulator For Load Cell and ADC Analog Power Supply.; On-Chip Power-ON-Reset; Simple Digital Control And Serial Interface.; IC Package: SOP 8
- Dimension:- Length: 18mm; Width: 17mm; Height: 2mm; Weight: 2gm
Code: HX710B
