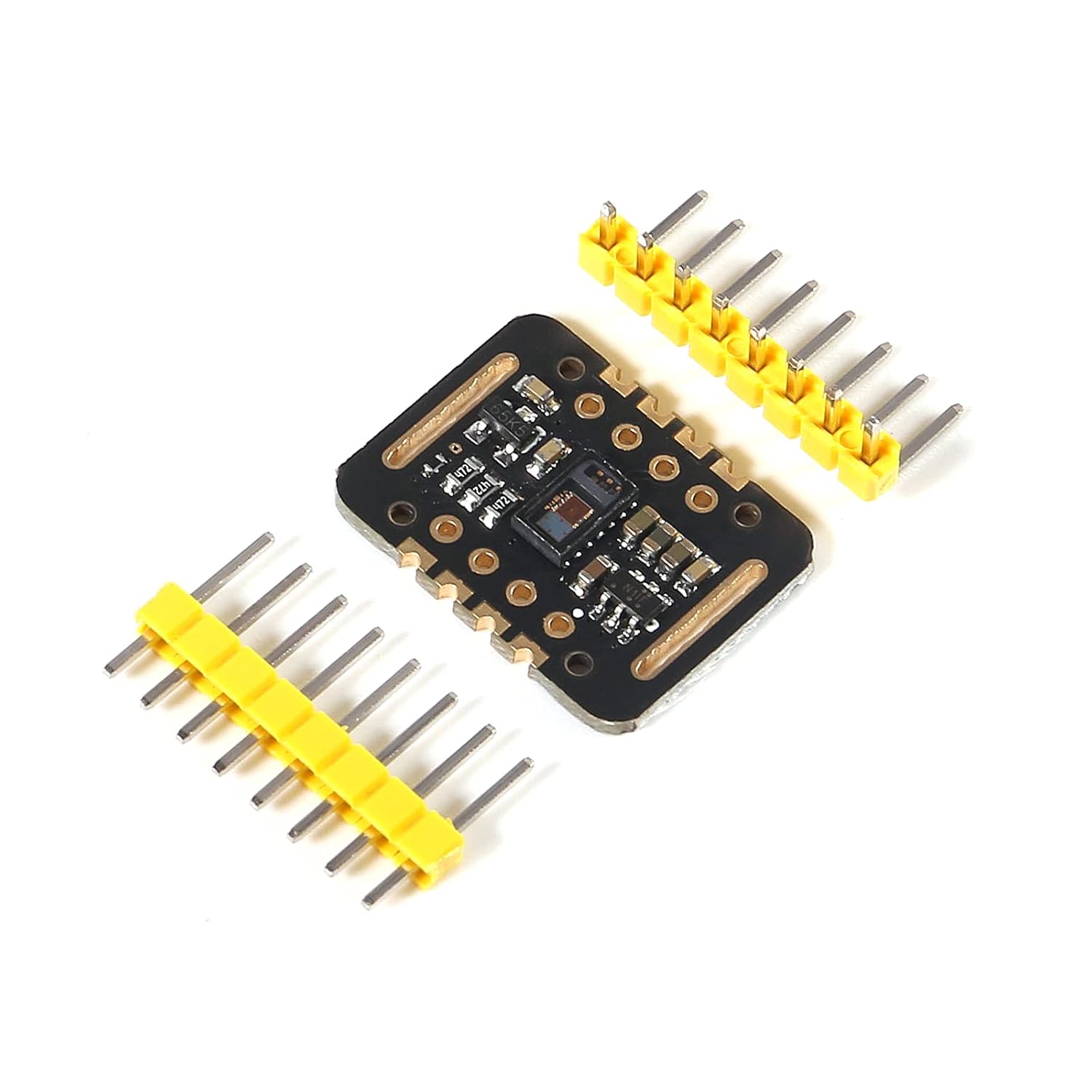

Heart Rate Sensor Module MAX30102 Blood Oxygen Sensor Pulse Detection

PULSE OXIMETER & HEART RATE MONITOR MODULE

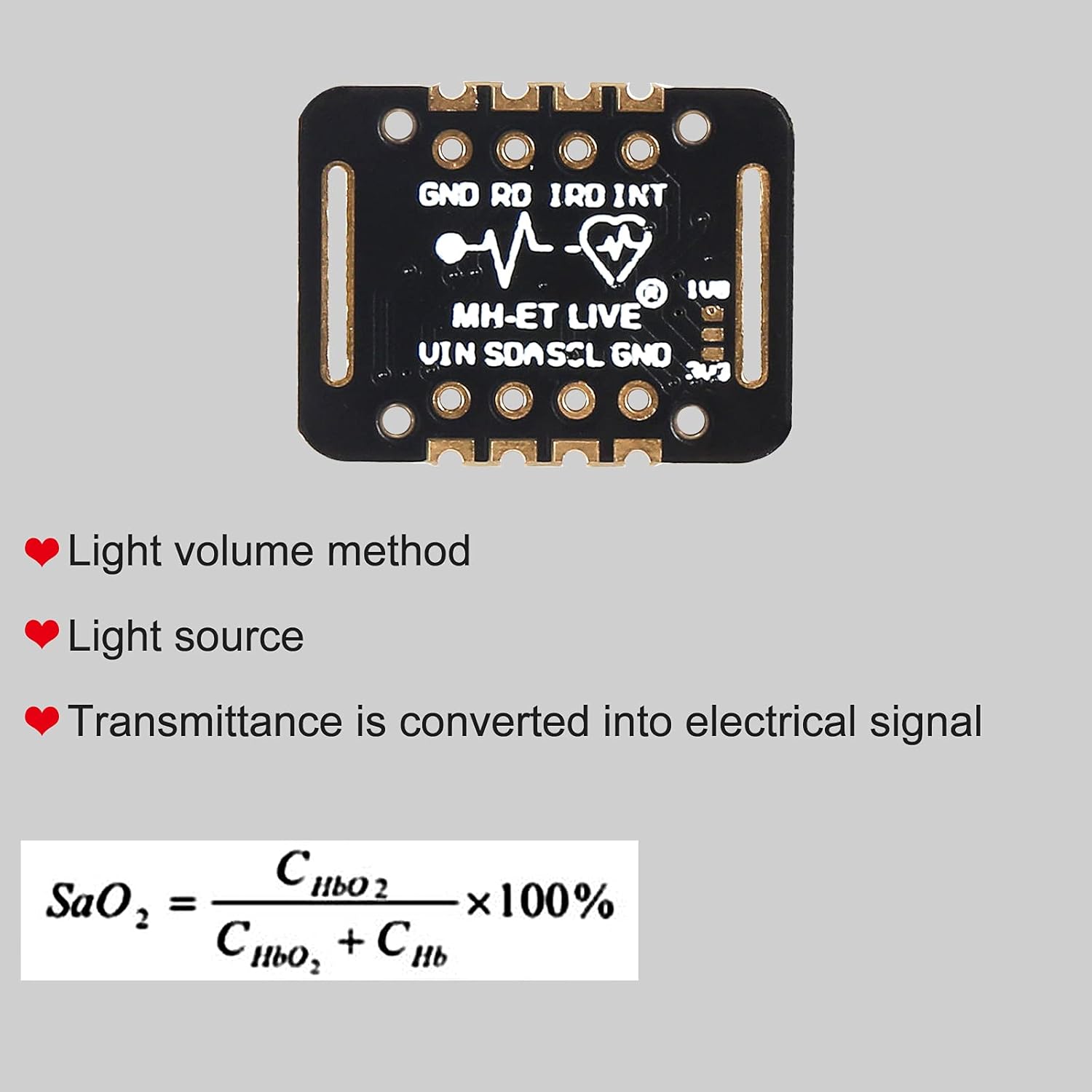

MAX30102 is an integrated module of heart rate monitor biosensor. It integrates a red LED with an infrared LED, a photoelectric detector, an optical device, and a low noise electronic circuit with ambient light suppression.
LED peak wavelength: 660nm/880nm; LED power supply voltage: 3.3~5V; Detection Signal Type: Optical Reflection Signal (PPG); Output Signal Interface: I2C Interface; Communication Interface Voltage: 1.8 ~3.3V~ 5V.

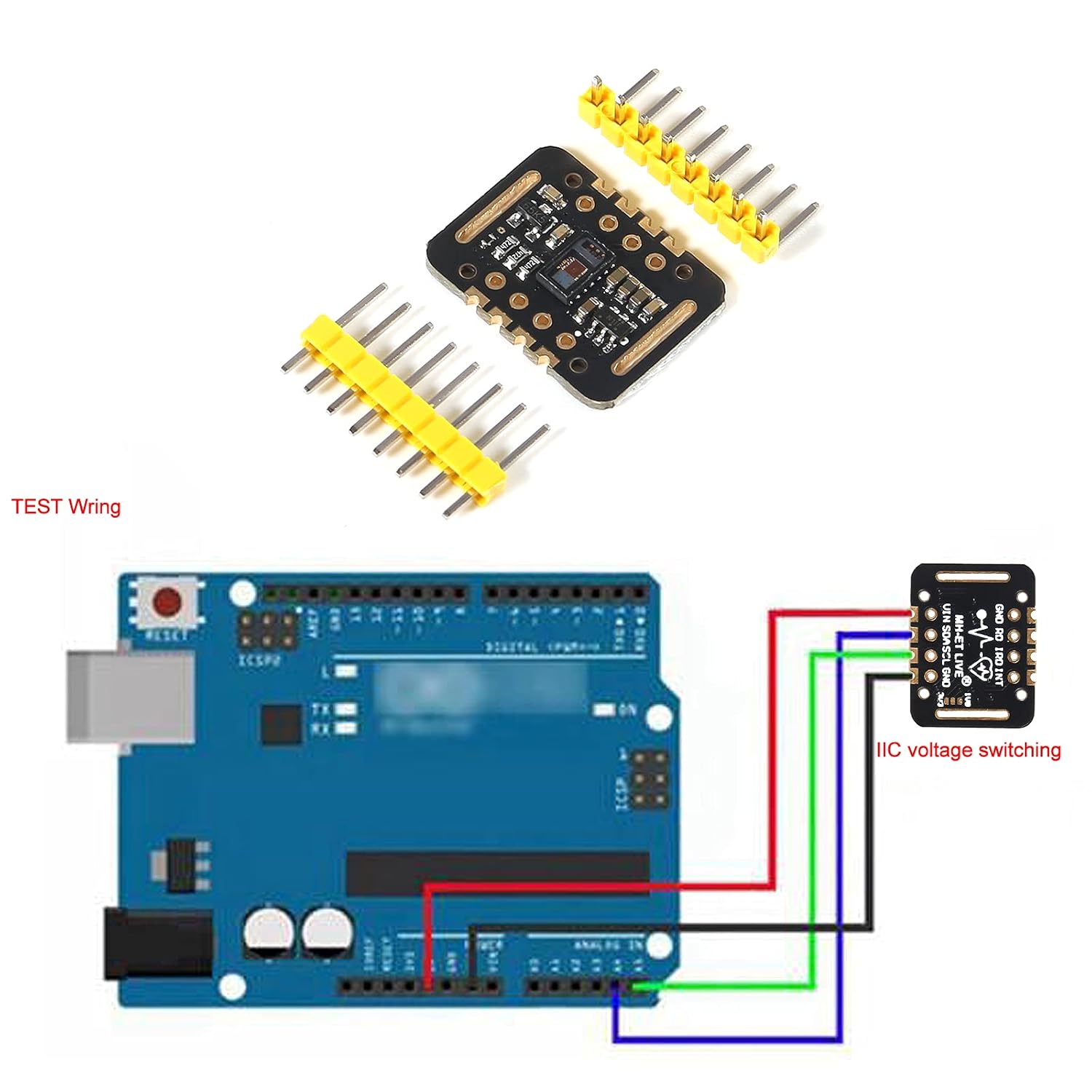

Application: MAX30102 is used in wearable equipment for heart rate and blood oxygen acquisition and detection. It is worn on fingers, earlobes and wrists.The standard I2C compatible communication interface can transmit the collected data to KL25Z and other microcontrollers for heart rate and blood oxygen calculation.
The chip can also turn off the module by software, and the standby current is close to zero, so that the power supply can always be maintained.
Package included:2x MAX30102 Heart Rate Sensor Module

Code: MAX30102

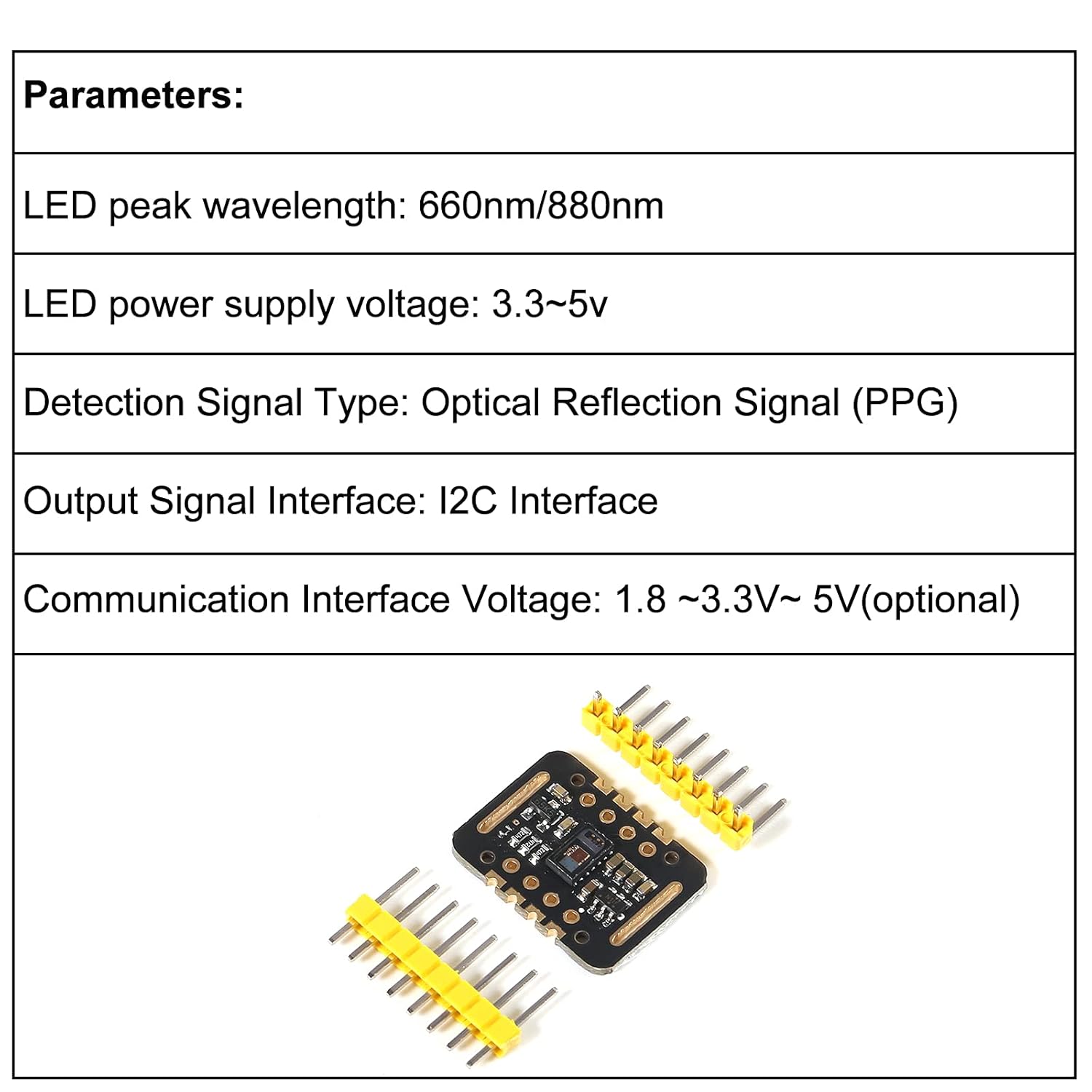

Description

LED peak wavelength:	660nm/880nm
LED power supply voltage:	3.3~5v
Detection Signal Type:	Optical Reflection Signal (PPG)
Output Signal Interface:	I2C Interface
Communicate Interface Voltage	1.8 ~ 5V
Reserve Mounting Hole Size:	0.5×8.5mm/0.02×0.33Inches.

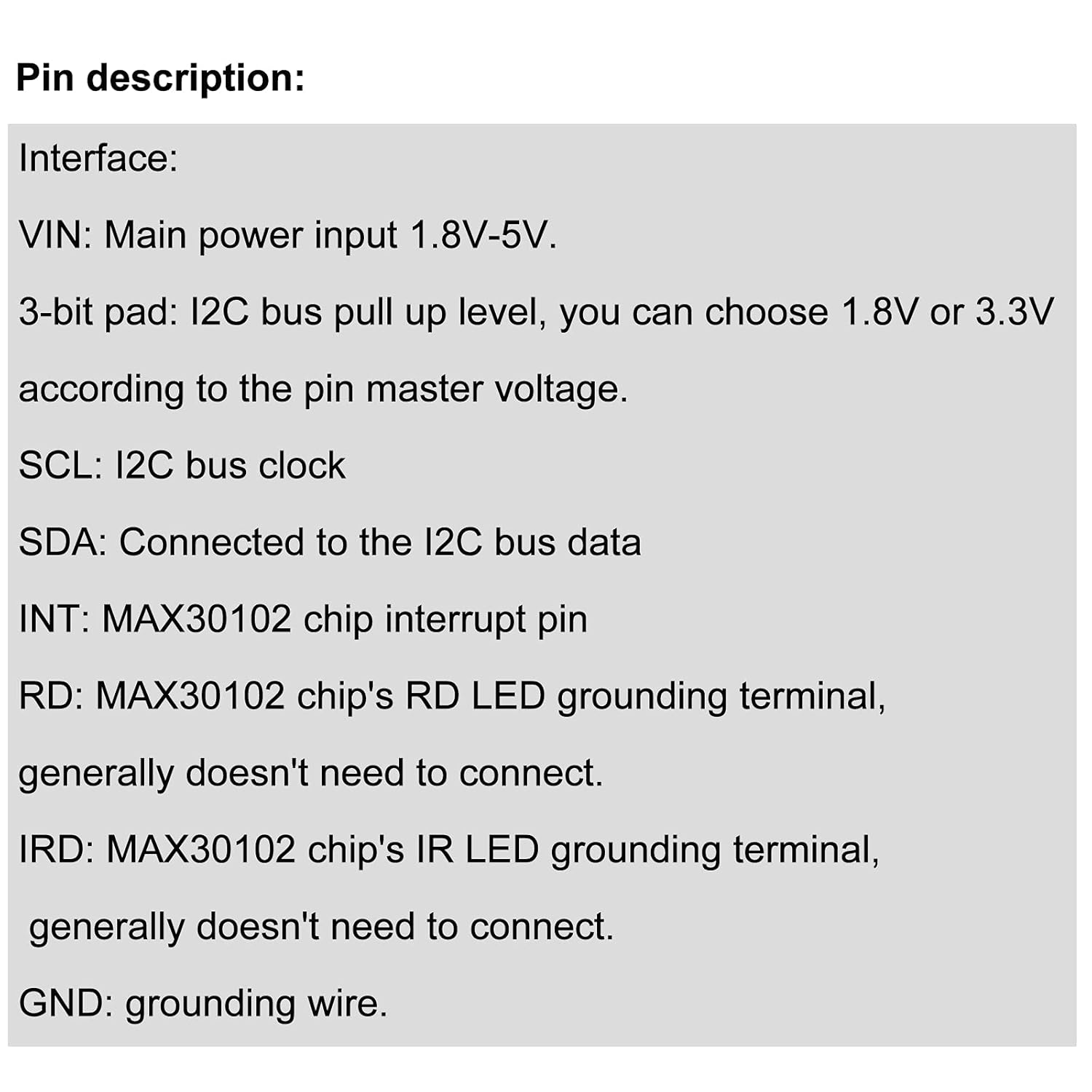

MAX30102 Heart Rate Sensor Module

VIN: Main power input, 1.8V-2.5V

3-bit pad: I2C bus pull up level, you can choose 1.8V or 3.3V according to the pin master voltage.

SCL: I2C bus clock

SDA: connected to the I2C bus data

INT: MAX chip interrupt pin

RD: MAX30102 chip’s RD LED grounding terminal, generally doesn’t need to connect

IRD: MAX30102 chip’s IR LED grounding terminal, generally doesn’t need to connect

GND: grounding wire

Series	MAX
